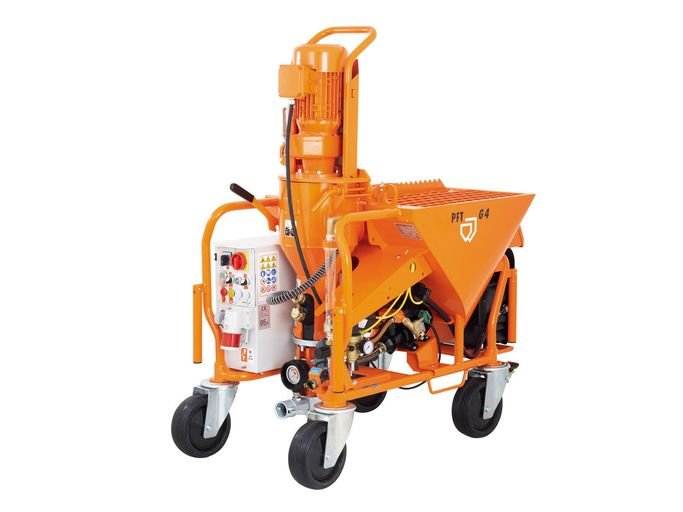

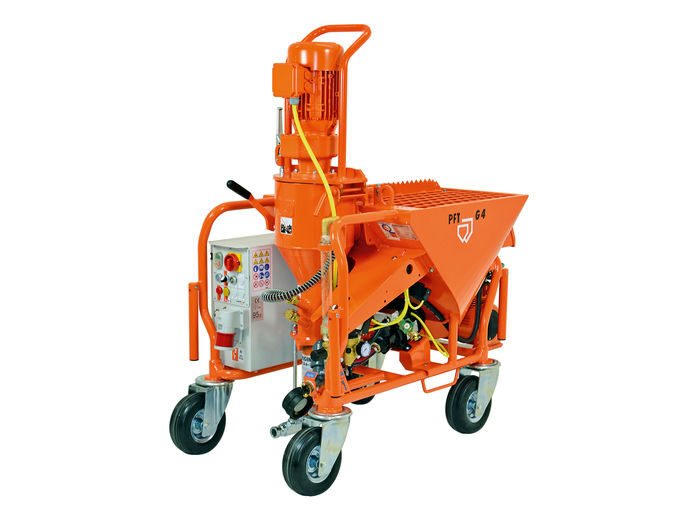

PFT G4 FC-230/400V

Edit

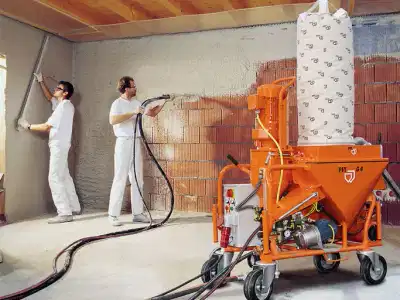

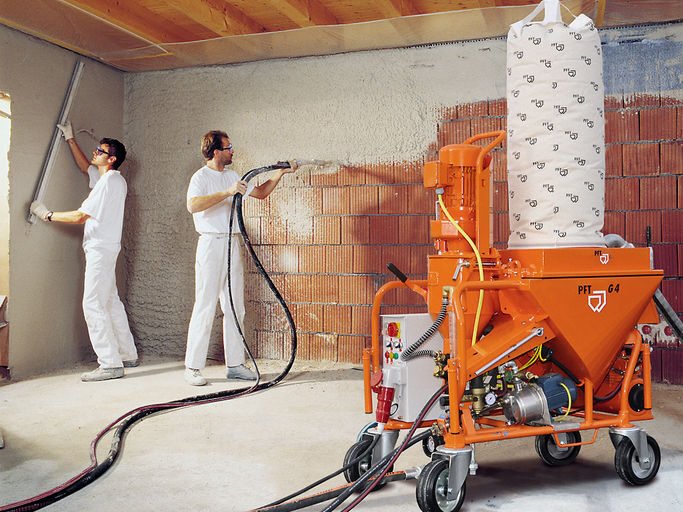

Mixing pumps – also called plastering machines or mortar pumps – of type PFT G 4 are suitable for all machine-standard dry mortars based on gypsum, lime and cement. The material container is separated from the mixing and pumping unit. The continuously and fully automatic G 4 can be started up and refilled at any time. It can be filled with bagged goods but also with a transfer hood directly from the silo / container or with an injection hood and PFT SILOMAT system. The PFT G 4 offers high conveying capacity and conveying distance and can be combined with the entire PFT machine program. With the flexible version G 4 FC-230 / 400V with frequency converter, a simple switchover is sufficient to adjust the output without changing the pump.

Edit

Switchable between 400 V and 230 V.
Phase sequence monitoring
Rubber mixing zone
Easy cleaning – rubber mixing zone with interchangeable flange for D and R pumps
Reinforced tubular frame and robust wheel mount
Forklift lugs and crane eyes
Wind deflector – reduction of dust exposure
Large control cabinet – easy to maintain and dust protection
Switches and connections are within the basic construction
Trouble-free operation thanks to the large fine water filter
Practical transport lock for the mixing tube, reduces the machine heightSimple, quick and efficient – loading the machine with material:

– Direct filling from the silo using a transfer hood

– Filling with bagged goods

– Pneumatic filling from the silo using the PFT SILOMAT conveyor system

Flexible mixing intensity thanks to two water inlets
Frequency converter (FC) for stepless speed control
Safe transport thanks to four handles with folding mechanism
Perfectly maintenance-friendly – the water fitting and pressure switch are easily accessible

Edit

Gypsum / gypsum-lime plaster
Lime-cement plaster
Light plaster
Adhesive / reinforcement mortar
Frame grouting mortar
Scratch plaster
Self-leveling screed
Clay plaster
Masonry mortar
Finishing plaster
Insulating plaster
Fire protection mortar
Floor leveling compounds

TECHNICAL SPECIFICATIONS

G 4 FC-230V / 400 V, 1 Ph, 50 Hz With Booster Pump

Art.-No .:
00260621
with booster pump

Power:

Delivery rate max .:
35 l / min

Delivery distance up to: 15 m for DN25 (230 V)
30 m for DN25 (400 V)
50 m for DN35 (400 V)

Basic equipment:

Connected load : 230/400 V, 1/3 Ph, 50 Hz, 5.5 kW
Control voltage: 42 V

Drive:
Pump motor: 5.5 kW, 400 rpm
2-stage gear with tilt
switch Cell wheel motor : 0.3 kW, 12 rpm

Mixing tube:
rubber mixing tube with interchangeable flange

Mixing helix:
BIONIK G 4 machine plaster

Mortar outlet with mortar pressure gauge:
DN35 female part

Castors:
2 swivel castors, 2 double-stop swivel castors

Water connection:
Geka DN19 (3/4 ") - 2.5 bar operating pressure

Operation and control:
start / stop including water pump control and stepless speed control at 230 V.

Dimensions:

Filling height:
910 mm

Container volume:
145 liters ~ 5 bags (each 30 kg)

Length / width / height:
1,200 / 720 / 1,530 mm

Total weight:
290 kg

Basic equipment package:

Pump unit : SD 6–3 slimline · 20 l / min · 25 bar

Mortar
hose : RONDO DN25 - 10 m

Adapter
coupling : DN35 male part | DN25 male part

Water pump to increase pressure:
AVO 500
230 V, 1 Ph, 50 Hz, 0.37 kW

Water flow meter:
150 - 1,500 l / h

Air compressor:
COMP P-200, 230 V, 1 Ph,
50 Hz, 0.5 kW, 200 l / min - max. 3.4 bar with pressure cut-off

Spraying device / fine plastering device : DN25-360 ° S14 200 Geka

Connection
cable : adapter cable RED 5-32 A | BLU 2-16 A - 1 m

Water / air hose:
DN12 (1/2 ") Ewo | Geka - 11 m

G 4 FC-230V / 400 V, 1 Ph, 50 Hz Without Booster Pump

Art.-No .:
00423408
without booster pump

Power:

Delivery rate max .:

35 l / min

Delivery distance up to: 15 m for DN25 (230 V)
30 m for DN25 (400 V)
50 m for DN35 (400 V)

Basic equipment:

Connected load : 230/400 V, 1/3 Ph, 50 Hz, 5.5 kW
Control voltage: 42 V

Drive:
Pump motor: 5.5 kW, 400 rpm
2-stage gear with tilt
switch Cell wheel motor : 0.3 kW, 12 rpm

Mixing tube:
rubber mixing tube with interchangeable flange

Mixing helix:
BIONIK G 4 machine plaster

Mortar outlet with mortar pressure gauge:
DN35 female part

Castors:
2 swivel castors, 2 double-stop swivel castors

Water connection:
Geka DN19 (3/4 ") - 2.5 bar operating pressure

Operation and control:
start / stop including water pump control and stepless speed control at 230 V.

Dimensions:

Filling height:
910 mm

Container volume:
145 liters ~ 5 bags (each 30 kg)

Length / width / height:
1,200 / 720 / 1,530 mm

Total weight:
290 kg

Basic equipment package:

Pump unit : SD 6–3 slimline · 20 l / min · 25 bar

Mortar
hose : RONDO DN25 - 10 m

Adapter
coupling : DN35 male part | DN25 male part

Water pump to increase pressure:
not included

Water flow meter:
150 - 1,500 l / h

Air compressor:
COMP P-200, 230 V, 1 Ph,
50 Hz, 0.5 kW, 200 l / min - max. 3.4 bar with pressure cut-off

Spraying device / fine plastering device : DN25-360 ° S14 200 Geka

Connection
cable : adapter cable RED 5-32 A | BLU 2-16 A - 1 m

Water / air hose:
DN12 (1/2 ") Ewo | Geka - 11 m
