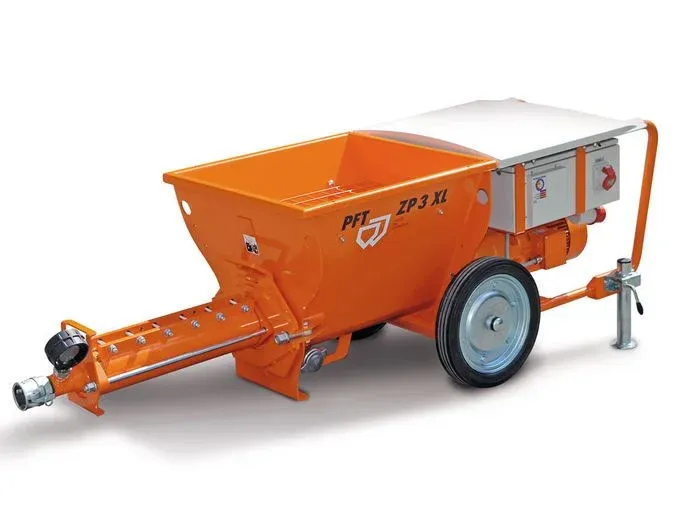

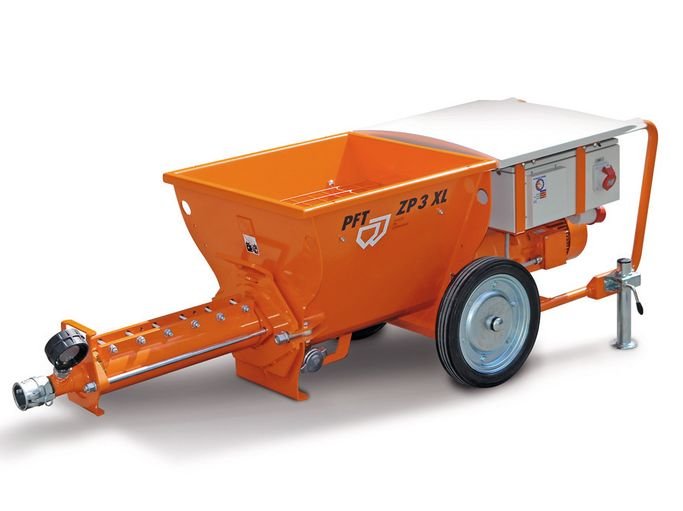

PFT ZP3 XL

Edit

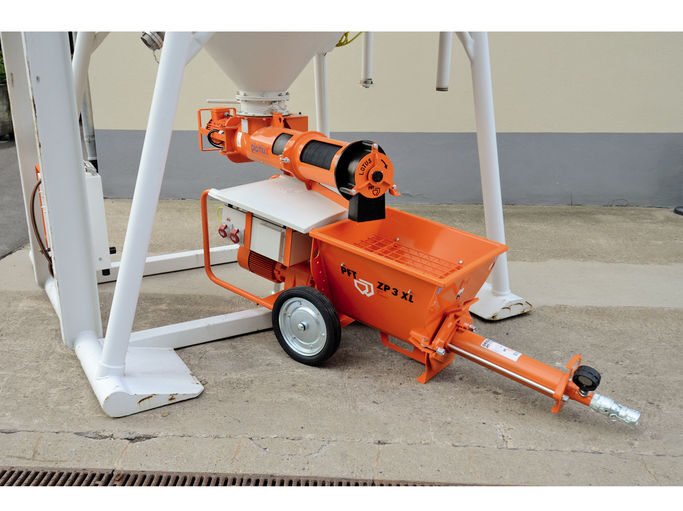

Feed pumps take over the transport of materials to the processing site on the construction site. The feed pumps from PFT are suitable for the processing of all pumpable ready-mixed dry mortars based on lime / cement as well as for wet products, pasty compounds and liquid media. With the ZP 3 family, PFT meets a wide range of requirements. The intermediate mortar pump pumps the plaster, masonry mortar or screed mixed by a continuous, compulsory or truck mixer directly. The delivery rate can be continuously adapted to the material requirements. A remote control is available to switch the PFT ZP 3 XL on and off.
Edit
  • Fixed speed
  • Variable delivery rate by changing the pump (D, R or T pump)
  • Solid rubber castors with steel rims
  • Double gear seal with inspection opening
  • Cleaning nozzle in the material container
  • Pump output continuously adjustable via frequency converter
  • Optional: vibrating screen
  • Lifting eyes
Edit
  • Masonry mortar
  • Lightweight masonry mortar
  • Reinforcement mortar
  • Screed mortar
  • Adhesive mortar
  • Tile / grout
  • Cement plaster
  • Insulating plaster
  • Clay plaster
  • Rubbed plaster
  • Renovation plaster
  • Scratch plaster

TECHNICAL SPECIFICATIONS

Item no .:
00102964

Power:

Delivery rate max .:
118 l / min (T-pump)

Delivery distance up to: 100 m at DN50



Basic equipment:

Connected load:
400 V, 3 Ph, 50 Hz, 7.5 kW

Drive:
pump motor: 7.5 kW, 175 rpm

Material container:
sheet metal

Mortar outlet with mortar pressure gauge:
DN50 female part

Roles:
2 roles

Water connection:
not included

Operation and control:
start / stop



Dimensions:

Filling height:
620 mm

Container volume:
130 liters

Length / width / height:
2,255 / 725/745 mm

Total weight:
238 kg



Basic equipment package:

Pump unit:
R 7-3 S · 27 l / min · 30 bar

Mortar hose:
not included

Coupling
reduction : DN35 female part | DN50 male part

Air compressor:
not included

Spraying device / fine plastering device:
not included

Connection cable:
not included

Water / air hose:
not included

Art.-No .:
00102957

Power:

Delivery rate max .:
130 l / min (T 10–1.5)

Delivery distance up to: 100 m at DN50



Basic equipment:

Connected load:
400 V, 3 Ph, 50 Hz, 7.5 kW

Drive:
pump motor: 7.5 kW, 84 - 280 rpm

Material container:
sheet metal

Mortar outlet with mortar pressure gauge:
DN50 female part

Roles:
2 roles

Water connection:
not included

Operation and control:
Pump output
electronically infinitely variable via frequency converter



Dimensions:

Filling height:
620 mm

Container volume:
130 liters

Length / width / height:
2,255 / 720/745 mm

Total weight:
240 kg



Basic equipment package:

Pump unit:
R 7–3 S · 12 - 42 l / min · 30 bar

Mortar hose:
not included

Coupling
reduction : DN35 female part | DN50 male part

Air compressor:
not included

Spraying device / fine plastering device:
not included

Connection cable:
not included

Water / air hose:
not included

Item no .:
00098125

Power:

Delivery rate max .:
118 l / min (T-pump)

Delivery distance up to: 100 m at DN50


Basic equipment:

Connected load:
400 V, 3 Ph, 50 Hz, 7.5 kW

Drive:
pump motor: 7.5 kW, 70 - 260 rpm

Material container:
sheet metal

Mortar outlet with mortar pressure gauge:
DN50 female part

Roles:
2 roles

Water connection:
not included

Operation and control:
pump output
continuously adjustable via vario gear



Dimensions:

Filling height:
620 mm

Container volume:
130 liters

Length / width / height:
2,255 / 720/745 mm

Total weight:
308 kg



Basic equipment package:

Pump unit:
R 7-3 S · 40 l / min · 30 bar

Mortar hose:
not included

Coupling
reduction : DN35 female part | DN50 male part

Air compressor:
not included

Spraying device / fine plastering device:
not included

Connection cable:
not included

Water / air hose:
not included

Brochure: Conveying pump PFT ZP 3 XL FC-400V
