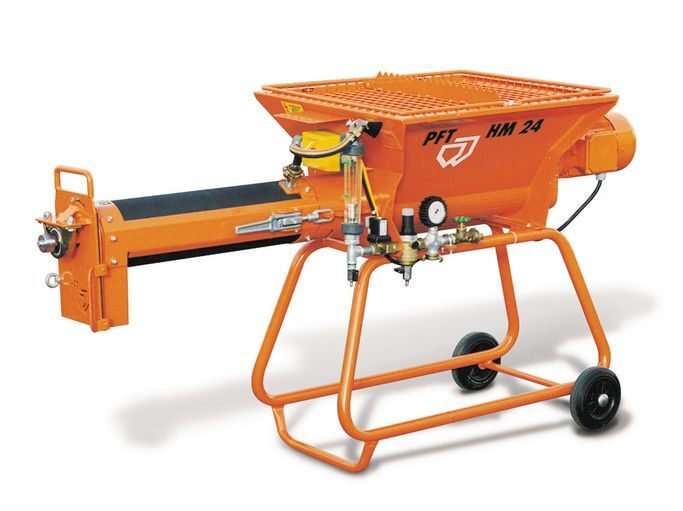

PFT HM 24

Edit

The horizontal PFT continuous mixers of the HM series – also known as mortar mixers – continuously and fully automatically mix all cement-based dry mortars (e.g. masonry mortar, joint mortar, leveling compounds, adhesive / reinforcement mortar) into a ready-to-use material. The machine is characterized by all-round qualities, easy handling and a maintenance-friendly belt drive. Depending on the series version, the continuous mixers can be used either only with bagged goods or optionally with bagged or silo goods or only with silo goods. The HM 24 400V is the all-rounder among the PFT continuous mixers. The machine can not only process any dry mortar based on lime and cement up to a grain size of 4 mm. Thanks to PFT module technology, the machine can be set to the required filling in no time at all, whether it.

Edit
  • Removable mortar outlet
  • Water tap with pressure reducer
  • Perfect interaction between continuous mixer and feed pump
  • Silo / container transfer possible using a transfer hood (item no. 20 60 05 00)
  • Minimal maintenance and cleaning effort
  • Convenient transportation
  • Phase inverter in the connector
  • Rubber mixing tube: no sticking of the material
  • Easy handling
  • Consistent mixing quality
Edit
  • Masonry mortar
  • Lightweight masonry mortar
  • Reinforcement mortar
  • Scratch plaster
  • Cement plaster
  • Insulating plaster
  • Screed mortar
  • Leveling weights
  • Adhesive mortar
  • Rubbed plaster
  • Renovation plaster
  • Tile and grout
  • Fine plaster

TECHNICAL SPECIFICATIONS

Item no .:
00020357

Power:

Mixing capacity:
20 - 50 l / min

Maximum grain size:
6 mm



Basic equipment:

Connected load:
400 V, 3 Ph, 50 Hz, 3 kW
Drive motor:
3 kW, 280 rpm

Mixing tube:
rubber mixing tube

Base:
fixed

Roles:
2 roles

Water connection:
Geka DN12 (1/2 ") - 2.5 bar operating pressure

Operation and control:
start / stop



Dimensions:

Filling height:
970 mm

Container volume:
110 liters ~ 3.5 bags (30 kg each)

Spout height:
650 mm

Length / width / height:
1,870 / 670/970 mm

Total weight:
110 kg



Basic equipment package:

Water flow meter:
100 - 1,000 l / h

Dosing shaft:
35 l / min

Booster pump:
not included
Connection cable:
not included

Water / air hose:
not included

Silo / container
handover : possible using a handover hood

Item no .:
00070219

Power:

Mixing capacity:
20 - 50 l / min

Maximum grain size:
6 mm

Basic equipment:

Connected load:
400 V, 3 Ph, 50 Hz, 3 kW
control voltage: 42 V
Drive motor:
3 kW, 280 rpm

Mixing tube:
rubber mixing tube

Base:
fixed

Roles:
2 roles

Water connection:
Geka DN12 (1/2 ") - 2.5 bar operating pressure

Operation and control:
start / stop

Dimensions:

Filling height:
970 mm

Container volume:
110 liters ~ 3.5 bags (30 kg each)

Spout height:
650 mm

Length / width / height:
1,870 / 670/970 mm

Total weight:
113 kg

Basic equipment package:

Water flow meter:
100 - 1,000 l / h

Dosing shaft:
35 l / min

Booster pump:
AVO 500
230 V, 1 Ph, 50 Hz, 0.37 kW
Connection cable:
not included

Water / air hose:
not included

Silo / container
handover : possible using a handover hood

Item no .:
00010127

Power:

Mixing capacity:
25 - 80 l / min

Maximum grain size:
6 mm

Basic equipment:

Connected load:
400 V, 3 Ph, 50 Hz, 5.5 kW
Drive motor:

5.5 kW, 292 rpm

Mixing tube:

steel mixing tube

Base:
fixed

Roles:
2 roles

Water connection:
Geka DN12 (1/2 ") - 2.5 bar operating pressure

Operation and control:
start / stop

Dimensions:

Filling height:
970 mm

Container volume:
110 liters ~ 3.5 bags (30 kg each)

Spout height:
650 mm

Length / width / height:
1,870 / 670/970 mm

Total weight:
110 kg

Basic equipment package:

Water flow meter:
100 - 1,000 l / h

Dosing shaft:
35 l / min

Booster pump:
AVO 500
400 V, 3 Ph, 50 Hz, 0.37 kW
Connection cable:
not included

Water / air hose:
not included

Silo / container
handover : possible using a handover hood

Brochure: Horizontal screw mixer PFT HM 24
