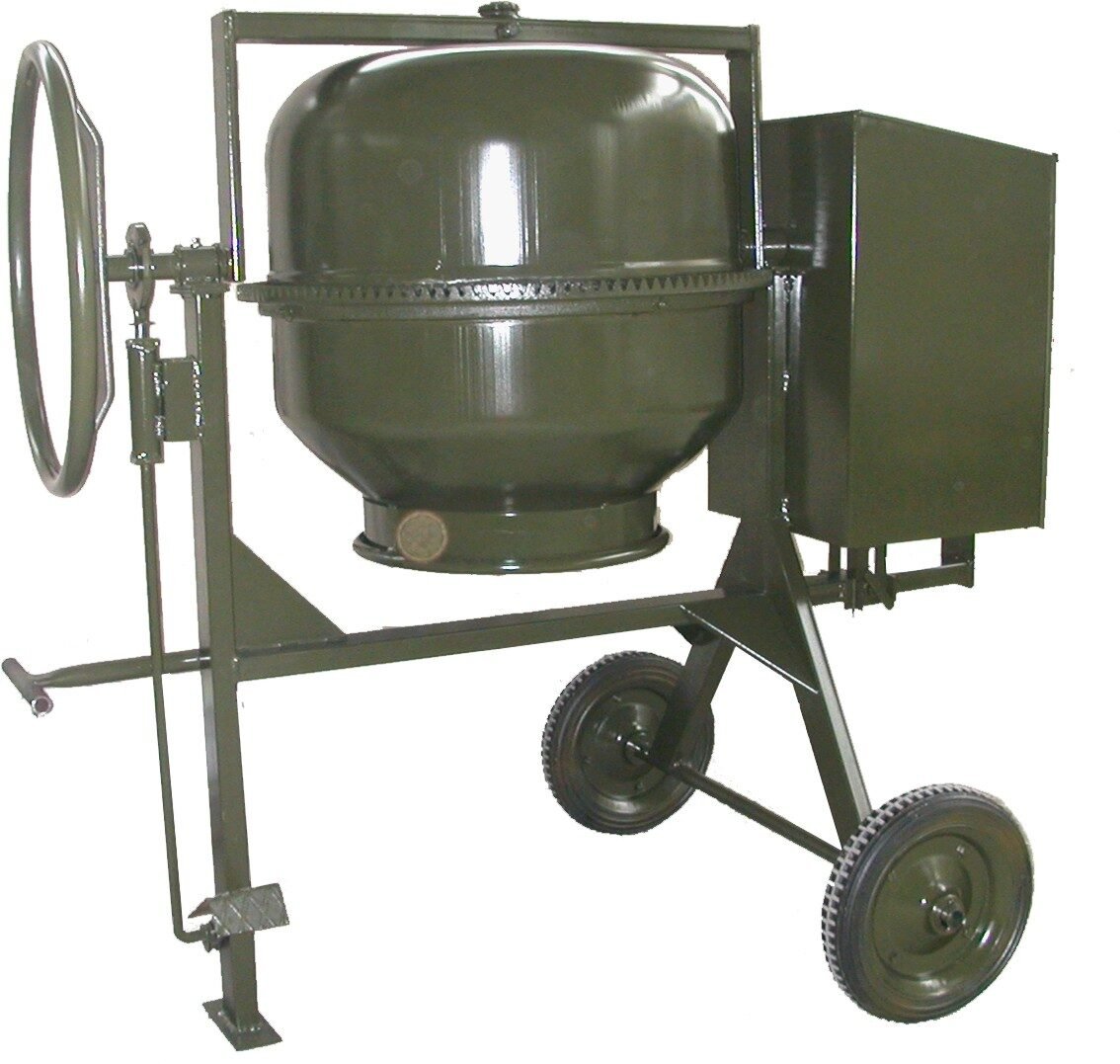

Εconomical Concrete Mixer

Edit

The smart solution for every professional or amateur thanks to its trouble-free operation and its small volume. Reinforced at all critical points of wear. Ideal for renovations where easy transport plays an important role.

Edit
  • Reinforced mixing bucket 1.5mm thick
  • Sturdy frame made of hollow structural section
  • Aid to the steel skeleton at critical points
  • Steel hoop in the mixing bucket
  • Cast iron gears not plastic
  • Hollow structural section beam arm (not pressed tube) with 10mm
  • 30mm bucket shaft detachable not glued
  • Tapered bearings on the mixing bucket shaft for long life

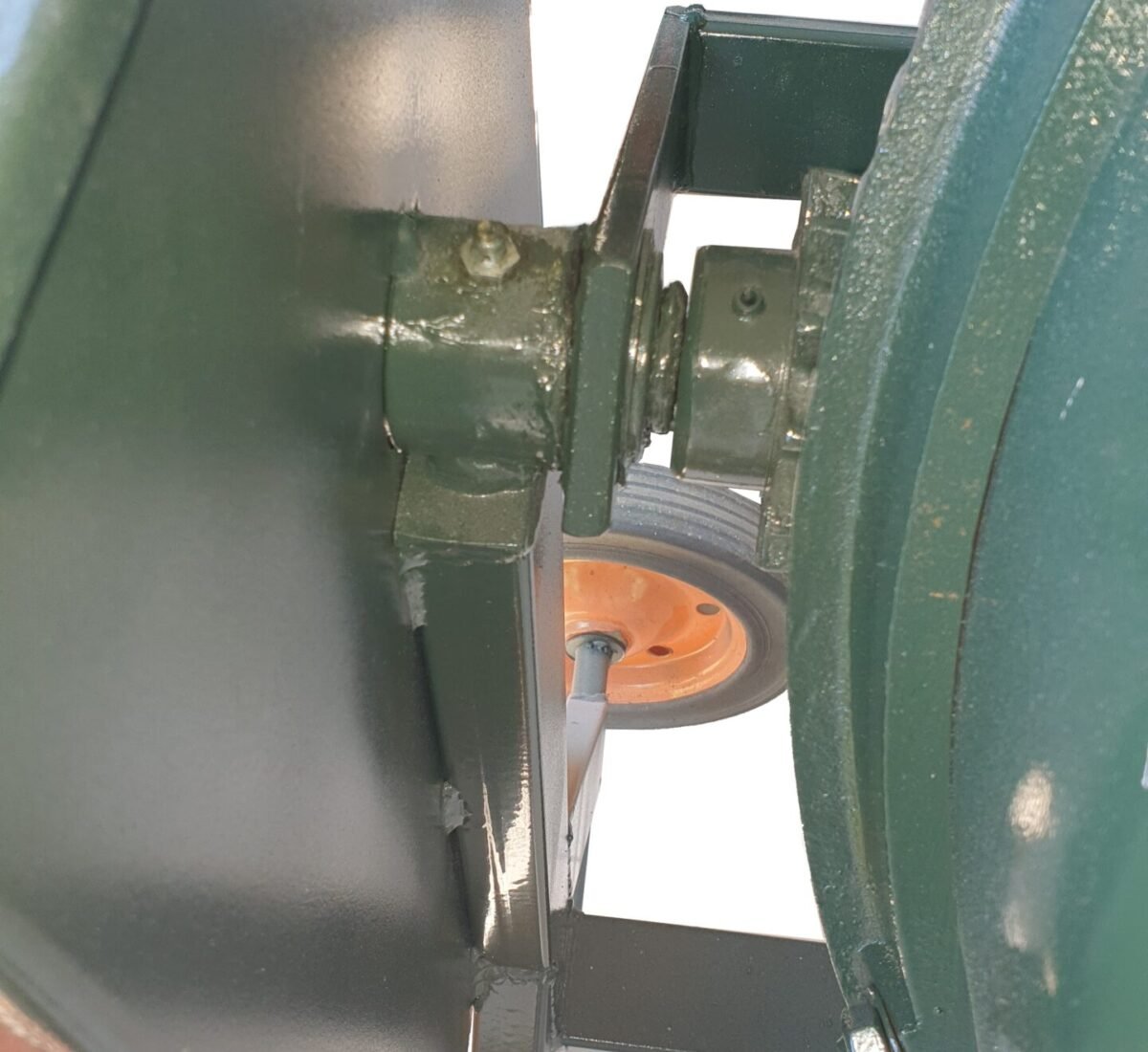

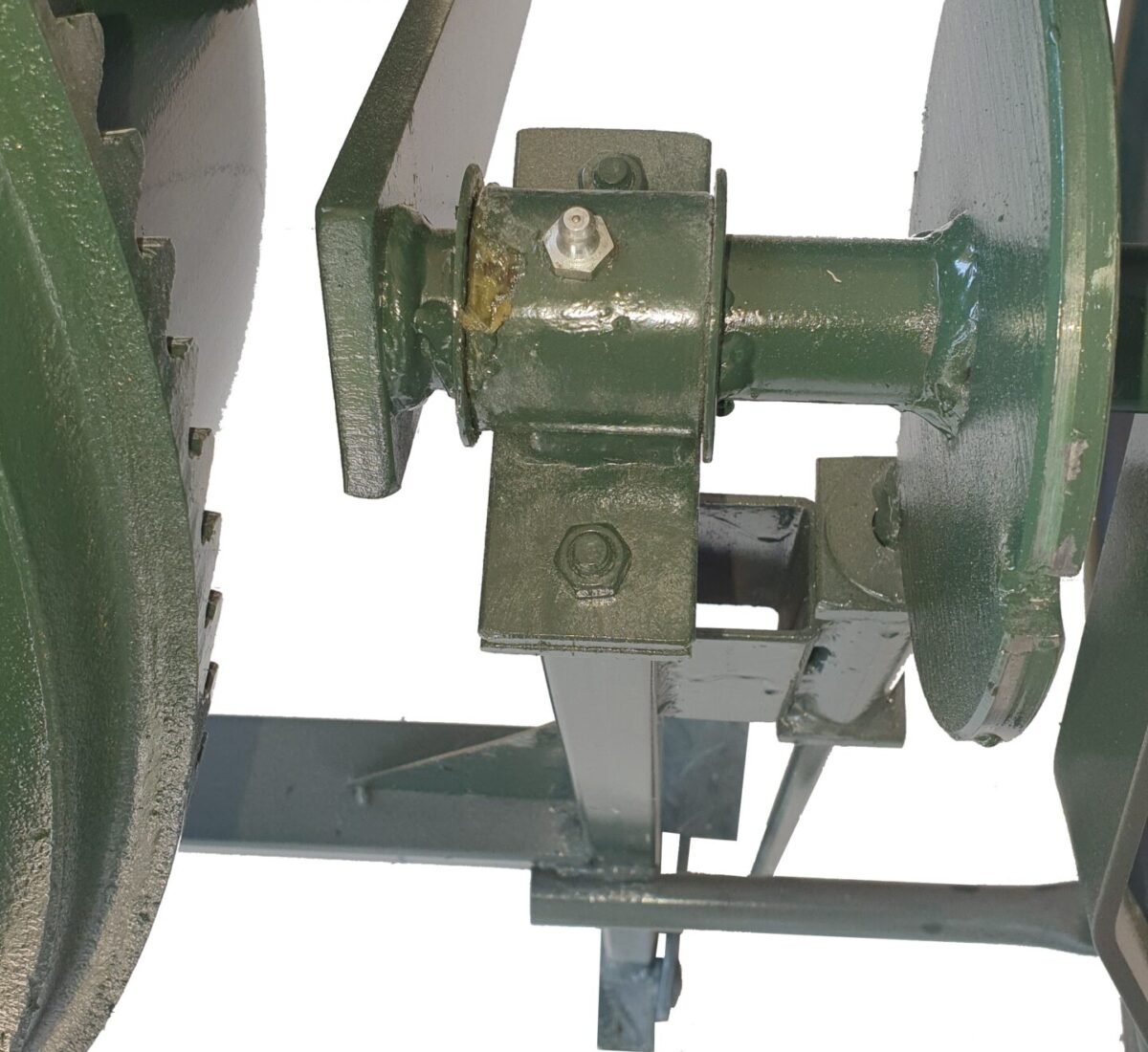

  • Pillow block bearing with grease  nipples

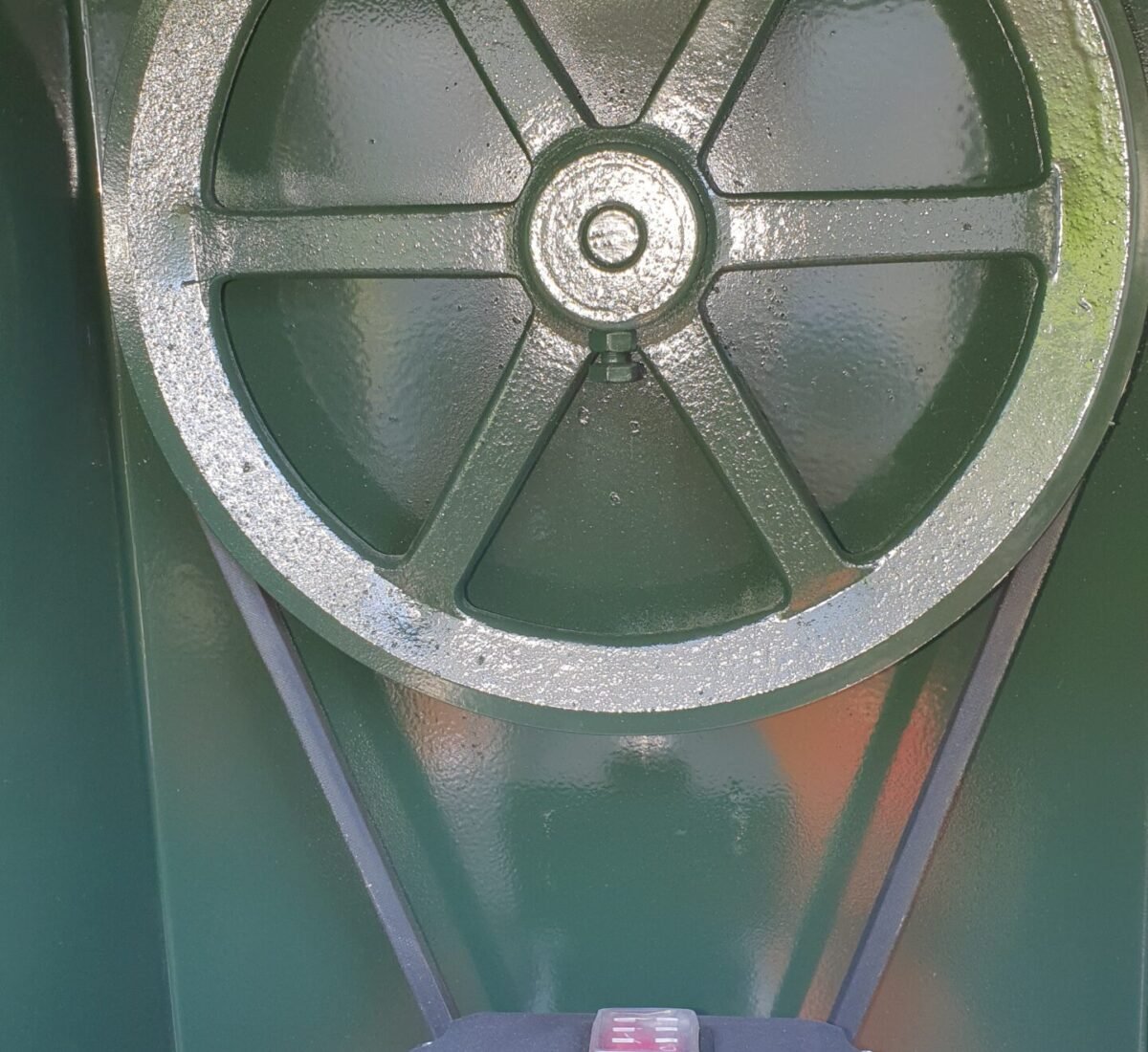

  • Aluminum pulley with a grooved rim around the outside
  • Reinforced hub made of reinforced steel tube and not pipe in the mixing bucket
  • Base ready with holes for electric or gasoline engine
  • Height-adjustable base for stretching the drive belt
  • Large wheels with metal rim and solid tire for easy movement
  • Version with split frame (upon request)
  • Version with stainless steel mixing bucket for special applications (upon request)
  • Easy maintenance thanks to standard spare parts
Edit
  • Coatings and mortars  of all types
  • Cement mortars etc.
  • In foods with stainless steel bucket

Technical Specification

Capacity: 130lit

Height: 1.21m

Length: 1.32m

Width: 0.83m

Weight: 67kgr (without engine)
