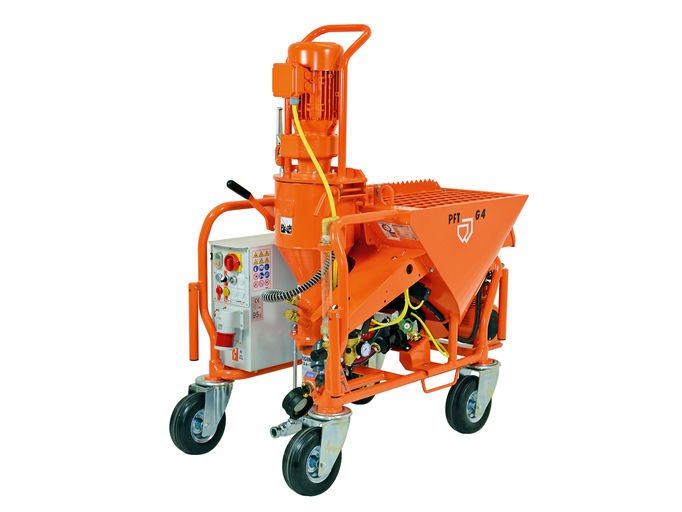

PFT G4 Smart

Edit

Mixing pumps – also called plastering machines or mortar pumps – of type PFT G 4 are suitable for all machine-standard dry mortars based on gypsum, lime and cement. The material container is separated from the mixing and pumping unit. The continuously and fully automatic G 4 can be started up and refilled at any time. It can be filled with bagged goods but also with a transfer hood directly from the silo / container or with an injection hood and PFT SILOMAT system. The PFT G 4 offers high conveying capacity and conveying distance and can be combined with the entire PFT machine program. The entry-level model G 4 smart is aimed specifically at users who have to pay attention to their budget but do not want to forego quality. A booster pump is available as part of the extended scope of delivery.

Edit

Control voltage 42 volts
Trouble-free operation thanks to the large fine water filter
Reinforced tubular frame and robust wheel mount
Forklift lugs and crane eyes
Simple, quick and efficient – loading the machine with material:

– Direct filling from the silo using a transfer hood

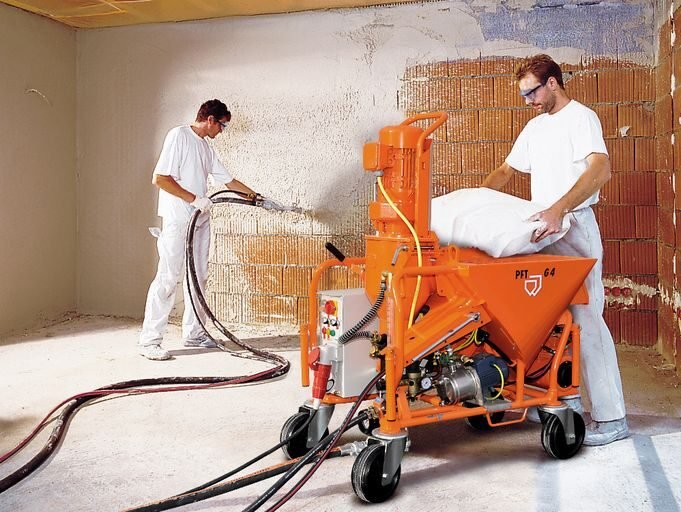

– Filling with bagged goods

– Pneumatic filling from the silo using the PFT SILOMAT conveyor system and injection hood

Switches and connections are within the basic construction
Flexible mixing intensity thanks to two water inlets
Safe transport thanks to four handles with folding mechanism
Perfectly maintenance-friendly – the water fitting and pressure switch are easily accessible.

Edit

Gypsum plaster
Lime-gypsum plaster
Cement plaster
Twilight
Lime-cement plaster
Fango masses
Insulating plaster
Slot mortar
Masonry mortar
Self-leveling screed
Flow spatula
Adhesive and reinforcement mortar

TECHNICAL SPECIFICATIONS

G4 smart 400 V, with booster pump 3 Ph, 50 Hz

Art.-No .:
00257359
with booster pump

Power:

Delivery rate max .:
35 l / min

Delivery distance up to: 30 m for DN25

Basic equipment:

Connected load:
400 V, 3 Ph, 50 Hz, 5.5 kW
control voltage: 42 V

Drive:
Pump motor: 5.5 kW, 400 rpm
2-stage gear with tilt
switch Cell wheel motor : 0.75 kW, 28 rpm

Mixing tube:
Mixing tube without an interchangeable flange

Mixing helix:
BIONIK G 4 machine plaster

Mortar outlet with mortar pressure gauge:
DN25 male part

Castors:
2 swivel castors, 2 double-stop swivel castors

Water connection:
Geka DN19 (3/4 ") - 2.5 bar operating pressure

Operation and control:
start / stop including water pump control

Dimensions:

Filling height:
910 mm

Container volume:
145 liters ~ 5 bags (each 30 kg)

Length / width / height:
1,200 / 720 / 1,530 mm

Total weight:
285 kg

Basic equipment package:

Pump unit : D 6-3 wf 20 l / min 30 bar

Mortar
hose : RONDO DN25 - 10 m

Water pump to increase pressure:
AVO 500
400 V, 3 Ph, 50 Hz, 0.37 kW

Water flow meter:
100 - 1,000 l / h

Air compressor:
COMP M-250-X0 handy, 400 V,
3 Ph, 50 Hz, 0.9 kW, 250 l / min -
max. 4 bar with pressure cut-off

Spraying device / fine plastering device : smartline DN25 F14 200 Geka

Connection cable:
not included

Water / air hose:
DN12 (1/2 ") Ewo | Geka - 11 m

G4 smart 400 V,without booster pump 3 Ph, 50 Hz

Art.-No .:
00260622
without booster pump

Power:

Delivery rate max .:
35 l / min

Delivery distance up to: 30 m for DN25

Basic equipment:

Connected load:
400 V, 3 Ph, 50 Hz, 5.5 kW
control voltage: 42 V

Drive:
Pump motor: 5.5 kW, 400 rpm
2-stage gear with tilt
switch Cell wheel motor : 0.75 kW, 28 rpm

Mixing tube:
Mixing tube without an interchangeable flange

Mixing helix:
BIONIK G 4 machine plaster

Mortar outlet with mortar pressure gauge:
DN25 male part

Castors:
2 swivel castors, 2 double-stop swivel castors

Water connection:
Geka DN19 (3/4 ") - 2.5 bar operating pressure

Operation and control:
start / stop including water pump control

Dimensions:

Filling height:
910 mm

Container volume:
145 liters ~ 5 bags (each 30 kg)

Length / width / height:
1,200 / 720 / 1,530 mm

Total weight:
285 kg

Basic equipment package:

Pump unit : D 6-3 wf 20 l / min 30 bar

Mortar
hose : RONDO DN25 - 10 m

Water pump to increase pressure:
not included

Water flow meter:
100 - 1,000 l / h

Air compressor:
COMP M-250-X0 handy, 400 V,
3 Ph, 50 Hz, 0.9 kW, 250 l / min -
max. 4 bar with pressure cut-off

Spraying device / fine plastering device : smartline DN25 F14 200 Geka

Connection cable:
not included

Water / air hose:
DN12 (1/2 ") Ewo | Geka - 11 m
