Rotor/Stator Program

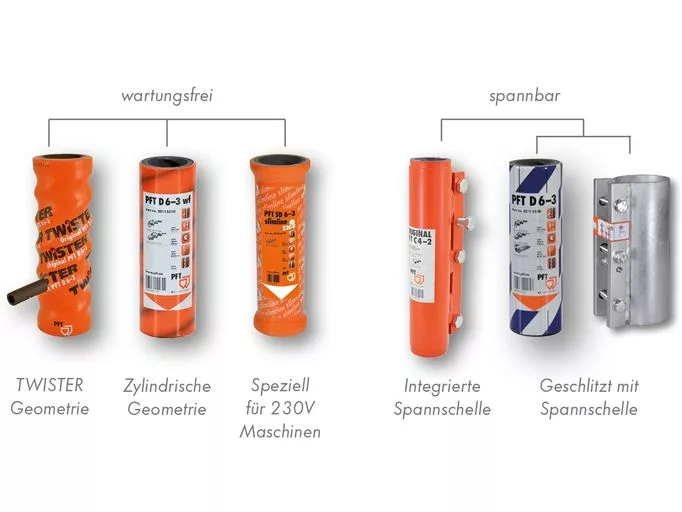

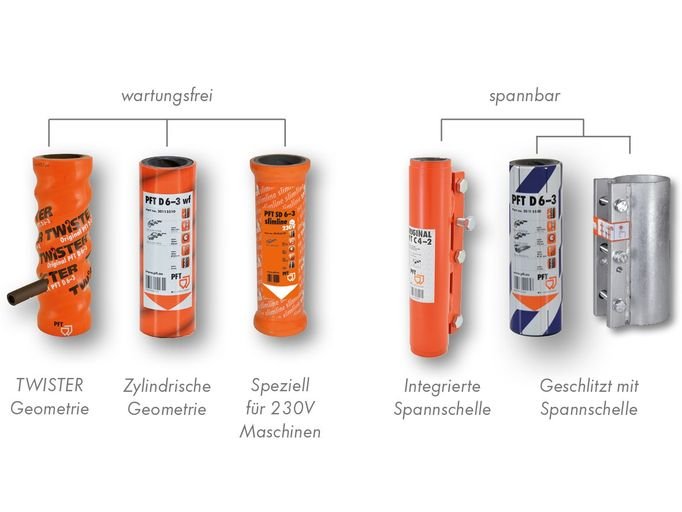

There are different types of stators. On the one hand, there are the maintenance-free stators, which can be used immediately after being installed in the machine. On the other hand, the clampable stators, which are clamped according to material and grain size, are in turn divided into two groups.

Description	Color	Grain size max. mm	Capacity l/min at 400 rpm	Capacity l/min at 200 rpm	Working pressure max. bar
2 L 6 clampable	yellow	6	68	34	25
A 2-2.5 L mf	green	2	2	1	20
A 3-2 L	silver	2	4	2	20
B 4-1,5 L (for colours)	greywhite	2	10	5	15
B 4-1,5 L (for plaster/mortar)	greywhite	2	10	5	15
B 4-2 mf	red	2	10	5	20
B 4-2 Spannleiste	red	3	10	5	20
C 4-2	orange	3	18	9	20
C 4-2 with clamp	orange	4	18	9	20
D 3-4 tensible	black	2	8	4	30
D 3-5 wf	white	2	6	3	25
D 4-2 clampable	special blue	4	20	10	20
D 4-2 LP clampable	black	4	20	10	20
D 4-3 clampable	green	4	14	7	25
D 4-3 PIN TWISTER	green	3	14	7	30
D 5-2,5 PIN TWISTER	silver	3	25	12	25
D 5-2,5 TWISTER	silver	3	22	11	25
D 5-2,5 wf	silver	3	22	11	25
D 6-2 mf	blue	2	20	10	15
D 6-2 TWISTER	blue	3	20	10	20
D 6-3 clampable	white blue	4	20	10	30
D 6-3 mf	orange	3	20	10	30
D 6-3 mf PIN	pink	3	20	10	30
D 6-3 PIN mf Luftpore	orange	3	20	20	30
D 6-3 TWISTER	orange	3	20	10	30
D 7-2,5 clampable	purple	4	24	12	25
D 7-2,5 neXt generation	purple	3	24	12	25
D 7-2,5 PIN TWISTER	purple	3	27	13	25
D 8-1,5 clampable	yellow	4	36	18	15
D 8-1,5 mf	yellow	4	36	18	15
D 8-1,5 PIN TWISTER	yellow	3	38	16	15
D 8-1,5 TWISTER	yellow	3	35	15	15
D 8-2 PIN TWISTER	black	3	32	16	25
D 8-2 TWISTER	black	3	32	16	25
Pump unit D 6-2 L mf	blue	3	10	20	15
R 7-1,5 clampable	ochre	7	60	30	15
R 7-2,5 clampable	brown	7	40	20	25
R 7-3 S clampable	ochre	7	60	30	30
R 7-3 S mf	ochre	7	60	30	25
R 8-1,5 clampable	black	8	80	40	15
R 8-2 clampable	black	8	80	40	20
R 8-3 clampable	black	8	80	40	30
R 9-1,5 clampable	green	8	145	70	15
R 9-2 clampable	green	8	145	70	20
RENDER STAR	green	6	100	50	20
SD 6-3 slimline	orange	2	20	10	20
T 10-1,5 mf	orange	8	270	135	15
TWISTER D 6-3 PIN	orange	3	20	10	30
