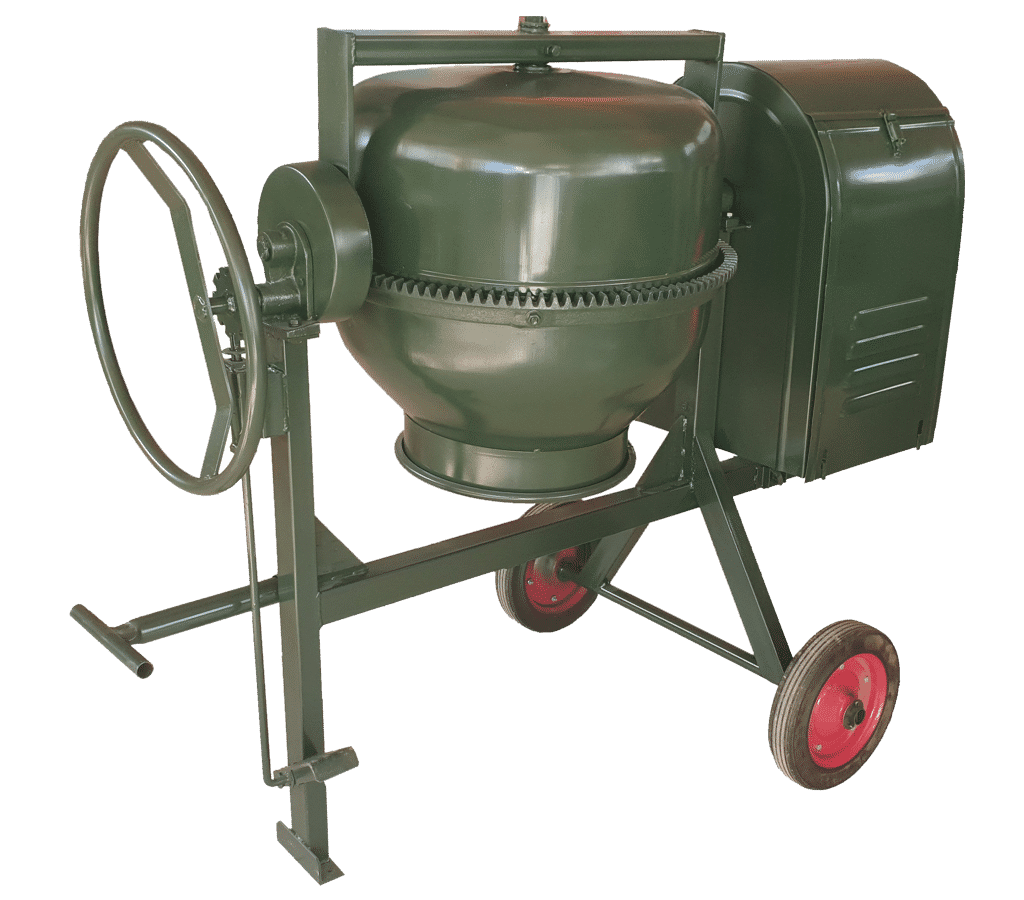

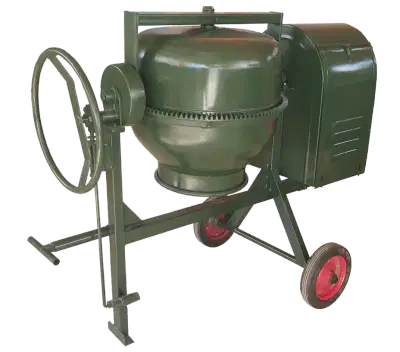

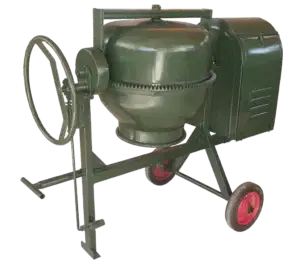

Plus Concrete Mixer


A concrete mixer for professional and private use in an economical version without compromises. Reinforced at all critical points of wear. Ideal tool for every professional and amateur, thanks to its trouble-free operation and reliability.

  • Reinforced mixing bucket 1.5mm thick
  • Sturdy frame made of hollow structural section
  • Aid to the steel skeleton at critical points
  • Steel hoop in the mixing bucket
  • Steel canopy frame with two lids for ease of use
  • Cast iron gears not plastic
  • Hollow structural section beam arm (not pressed tube) with 12mm blade and extra ring at the point of rotation
  • 30mm bucket shaft detachable not glued
  • Tapered bearings on the mixing bucket shaft for long life
  • Pillow block bearing with grease  nipples
  • Aluminum pulley with a grooved rim around the outside
  • Cast iron reducer 1/3 weight reduction when emptying the material
  • Reinforced hub made of reinforced steel tube and not pipe in the mixing bucket
  • Base ready with holes for electric or gasoline engine
  • Height-adjustable base for stretching the drive belt
  • Large wheels with metal rim and solid tire for easy movement
  • Version with inflatable wheels and towbar (upon request)
  • Version with stainless steel mixing bucket for special applications (upon request)
  • Easy maintenance thanks to standard spare parts
  • Coatings and mortars  of all types
  • Cement mortars etc.
  •  In foods with stainless steel bucket

Technical Specification

Capacity: 170lit

Height: 1.33m

Length: 1.53m

Width: 0.90m

Weight: 122 kgr (without engine)
