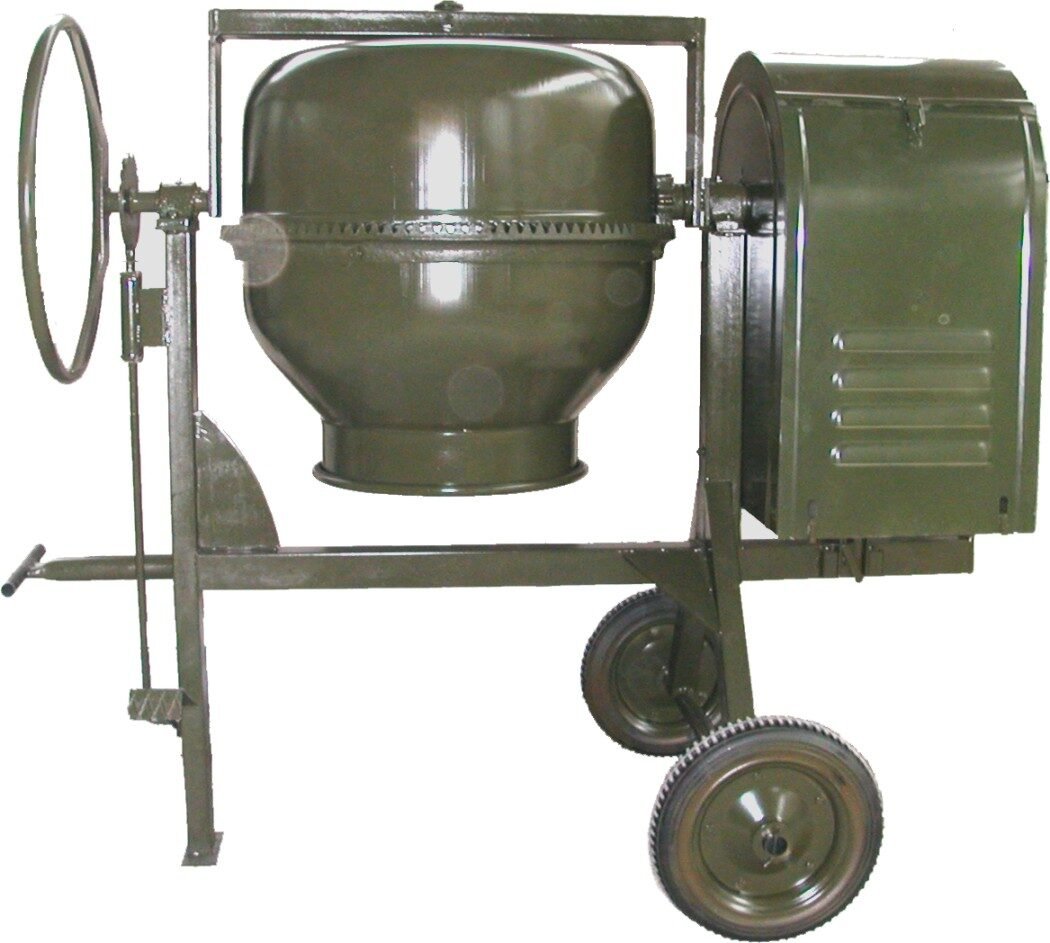

Standard Concrete Mixer

Edit

A simpler version of the concrete mixer with a capacity of 210 liters. Reinforced at all critical points of wear. Ideal tool for every professional and   amateur, thanks to its trouble-free operation and reliability.

Edit
  • Reinforced mixing bucket 1.5mm thick
  • Sturdy frame made of hollow structural section
  • Aid to the steel skeleton at critical points
  • Steel hoop in the mixing bucket
  • Steel canopy frame with two lids for ease of use
  • Cast iron gears not plastic
  • Hollow structural section beam arm (not pressed tube) with 12mm blade and extra ring at the point of rotation
  • 30mm bucket shaft detachable not glued
  • Tapered bearings on the mixing bucket shaft for long life
  • Pillow block bearing with grease  nipples
  • Aluminum pulley with a grooved rim around the outside
  • Reinforced hub made of reinforced steel tube and not pipe in the mixing bucket
  • Base ready with holes for electric or gasoline engine
  • Height-adjustable base for stretching the drive belt
  • Large wheels with metal rim and solid tire for easy movement
  • Version with inflatable wheels and towbar (upon request)
  • Version with stainless steel mixing bucket for special applications (upon request)
  • Easy maintenance thanks to standard spare parts
Edit
  • Coatings and mortars  of all types.
  • Cement mortars etc.
  •  In foods with stainless steel bucket.

Technical Specification

Capacity: 170 lit

Height: 1.33 m

Length: 1.48 m

Width: 0.90 m

Weight: 117 kgr (without engine)
