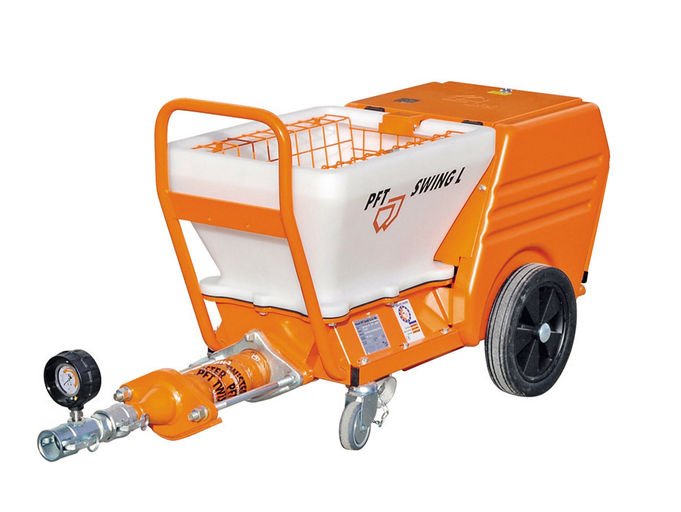

PFT Swing L

Edit

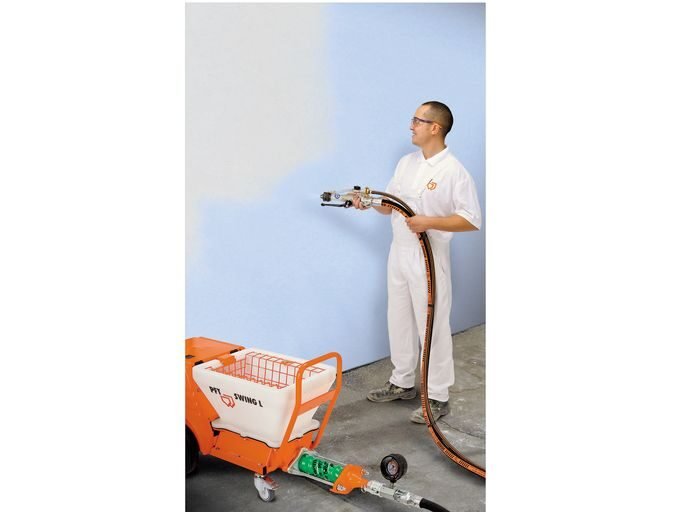

Feed pumps take over the transport of materials to the processing site on the construction site. The feed pumps from PFT are suitable for the processing of all pumpable ready-mixed dry mortars based on lime / cement as well as for wet products, pasty compounds and liquid media. With the SWING family, PFT meets a wide range of requirements. Thin, pumpable and solvent-free materials up to a maximum grain size of 8 mm can be pumped, pressed and sprayed. It is filled from a bucket or a continuous mixer. In conjunction with an air compressor and a spray device, the SWING L can also be used to apply plasters and paints.

Edit

Low filling height, fits easily under almost all mixers
Plastic material container – easy to clean
Variable delivery rate by changing the pump (D or R pump)
High delivery rate and delivery distance
Universal filling from a bucket or continuous mixer
Handy and compact
Fast cleaning and maintenance
Fits in every station wagon without dismantling

Edit

Adhesive and reinforcement mortar
Finishing plaster
Insulating plaster
Floor spatula
Fine filler
Masonry mortar
Floor screed up to 60 l / min

TECHNICAL SPECIFICATIONS

SWING L FC-230V 230 V, 1 Ph, 50 Hz

Item no .:
00201952

Power:

Delivery rate max .:
6.5 - 21 l / min

Delivery distance up to: 15 m for DN25

Basic equipment:

Connection value:
230 V, 1 Ph, 50 Hz, 4 kW

Drive:
pump motor: 4 kW, 70 - 236 rpm

Material container:
plastic

Mortar outlet with mortar pressure gauge:
DN35 female part

Castors:
2 castors, 2 swivel castors

Water connection:
not included

Operation and control:
pump output continuously adjustable via potentiometer

Dimensions:

Filling height:
610 mm

Container volume:
76 liters

Length / width / height:
1,600 / 600/660 mm

Total weight:
133 kg

Basic equipment package:

Pump unit : TWISTER D 8–1.5 · 21 l / min · 15 bar

Mortar hose:
not included

Coupling
reduction : DN35 male part | DN25 male part

Air compressor:
not included

Spray gun / fine plastering device:
not included

Connection cable:
3 x 2.5 mm², BLU 3-16 A - 25 m

Water / air hose:
not included

SWING L 400 V, 3 Ph, 50 Hz

Item no .:
00197829

Power:

Delivery rate max .:

15.4 l / min

Delivery distance up to: 30 m for DN25

Basic equipment:

Connection value:

400 V, 3 Ph, 50 Hz, 5.5 kW

Drive:

pump motor: 5.5 kW, 292 rpm

Material container:
plastic

Mortar outlet with mortar pressure gauge:
DN35 female part

Castors:
2 castors, 2 swivel castors

Water connection:
not included

Operation and control:
start / stop

Dimensions:

Filling height:
610 mm

Container volume:
76 liters

Length / width / height:
1,600 / 600/660 mm

Total weight:
133 kg

Basic equipment package:

Pump unit : TWISTER D 6–3 · 15.4 l / min · 30 bar

Mortar hose:
not included

Coupling
reduction : DN35 male part | DN25 male part

Air compressor:
not included

Spray gun / fine plastering device:
not included

Connection cable:

not included

Water / air hose:
not included

SWING L FC-400V 400 V, 3 Ph, 50 Hz

Item no .:
00178415

Power:

Delivery rate max .:

4 - 90 l / min

Delivery distance up to: 30 m for DN25

Basic equipment:

Connection value:

400 V, 3 Ph, 50 Hz, 5.5 kW

Drive:

Pump motor: 5.5 kW, 135 - 448 rpm

Material container:
plastic

Mortar outlet with mortar pressure gauge:
DN35 female part

Castors:
2 castors, 2 swivel castors

Water connection:
not included

Operation and control:

pump output continuously adjustable via potentiometer

Dimensions:

Filling height:
610 mm

Container volume:
76 liters

Length / width / height:
1,600 / 600/660 mm

Total weight:
133 kg

Basic equipment package:

Pump unit : TWISTER D 6–3 · 15.4 l / min · 30 bar

Mortar hose:
not included

Coupling
reduction : DN35 male part | DN25 male part

Air compressor:
not included

Spray gun / fine plastering device:
not included

Connection cable:

not included

Water / air hose:
not included

Brochure: Conveying Pump PFT Swing L FC-400V

Download

Brochure: Conveying Pump PFT Swing L

Download
