PFT Ritmo L Plus
TECHNICAL SPECIFICATIONS

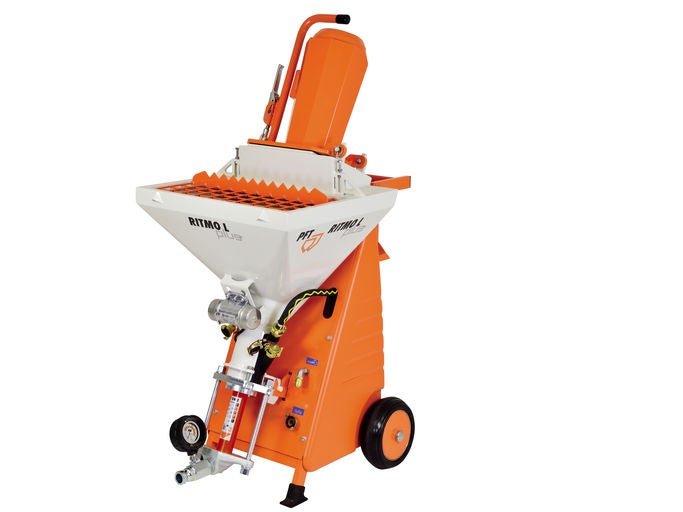

00659504
Delivery rate max .:
14 l / min
Delivery distance up to:
40 m for leveling compounds
20 m for plaster mortar
Connected load:
230 V, 1 Ph, 50 Hz, 2.2 kW
control voltage: 42 V
Drive:
Pump motor: 2.2 kW, 69 - 492 rpm
Mixing tube:
rubber mixing tube with interchangeable flange
Mixing helix:
BIONIK RITMO L plus
machine plaster plus, D = 76 mm
Mortar outlet with mortar pressure gauge:
DN25 male part
Roles:
2 roles
Water connection:
Geka DN12 (1/2 ") - 2.5 bar operating pressure
Operation and control:
start / stop and stepless speed control.
Compressor: pressure control
Dimensions:
Filling height:
930 mm
Container volume:
45 liters ~ 1.5 bags (each 30 kg)
Length / width / height:
750/600 / 1,430 mm
Total weight:
125 kg
Basic equipment package:
Pump unit : B 4–2 wf · 14 l / min · 20 bar
Mortar
hose : RONDO DN25 - 5 m
RONDO DN25 - 15 m
External vibrator: AM3-0.44 - 1.2 m,
230 V, 1 Ph, 50 Hz
Water pump to increase pressure:
not included
Water flow meter:
100 - 1,000 l / h
Air compressor:
COMP R-80, 230 V, 1 Ph, 50 Hz,
0.35 kW, 80 l / min - max. 1.8 bar with pressure cut-off

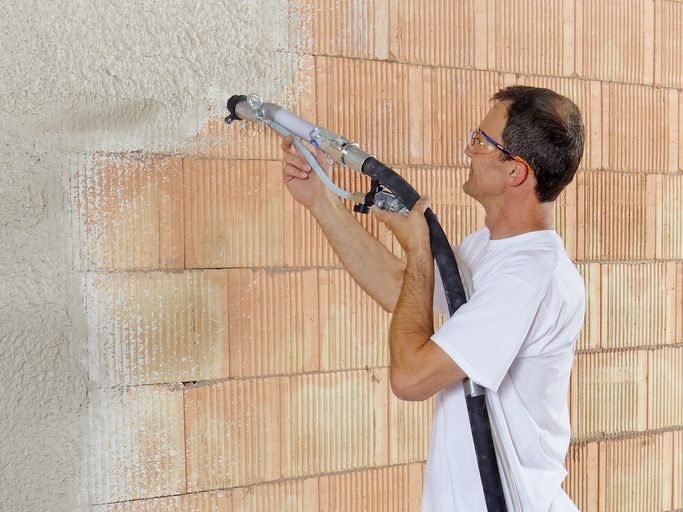

Spraying device / fine plastering device : DN25-360 ° S10 200 Ewo
Connection cable:
3 x 2.5 mm²,
BLU 3-16 A | BLU 2-16 A - 25 m
Water / air hose:
DN9 (3/8 ") Ewo | Ewo - 5 m
DN9 (3/8") Ewo | Ewo - 16 m
DN12 (1/2 ") Geka | Geka - 11 m

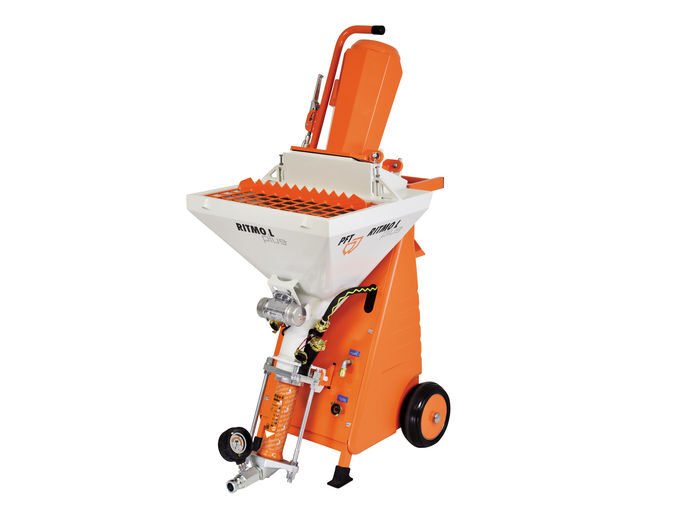

00657443
Delivery rate max .:
19 l / min
Delivery distance up to:
20 m for gypsum plaster
Basic equipment:
Connected load:
230 V, 1 Ph, 50 Hz, 2.2 kW
control voltage: 42 V
Drive:
Pump motor: 2.2 kW, 69 - 361 rpm
Mixing tube:
rubber mixing tube with interchangeable flange
Mixing helix:
BIONIK RITMO L plus
machine plaster plus, D = 76 mm
Mortar outlet with mortar pressure gauge:
DN25 male part
Roles:
2 roles
Water connection:
Geka DN12 (1/2 ") - 2.5 bar operating pressure
Operation and control:
start / stop and stepless speed control.
Compressor: pressure control
Dimensions:
Filling height:
930 mm
Container volume:
45 liters ~ 1.5 bags (each 30 kg)
Length / width / height:
750/600 / 1,430 mm
Total weight:
133 kg
Basic equipment package:
Pump unit : SD 6–3 slimline · 19 l / min · 20 bar
Mortar
hose : RONDO DN25 - 5 m
RONDO DN25 - 15 m
External vibrator: AM3-0.44 - 1.2 m,
230 V, 1 Ph, 50 Hz
Water pump to increase pressure:
not included
Water flow meter:
100 - 1,000 l / h
Air compressor:
COMP R-80, 230 V, 1 Ph, 50 Hz,
0.35 kW, 80 l / min - max. 1.8 bar with pressure cut-off
Spraying device / fine plastering device : DN25-360 ° S10 200 Ewo
Connection cable:
3 x 2.5 mm²,
BLU 3-16 A | BLU 2-16 A - 25 m
Water / air hose:
DN9 (3/8 ") Ewo | Ewo - 5 m
DN9 (3/8") Ewo | Ewo - 16 m
DN12 (1/2 ") Geka | Geka - 11 m
