PFT ZP3 XXL

Edit

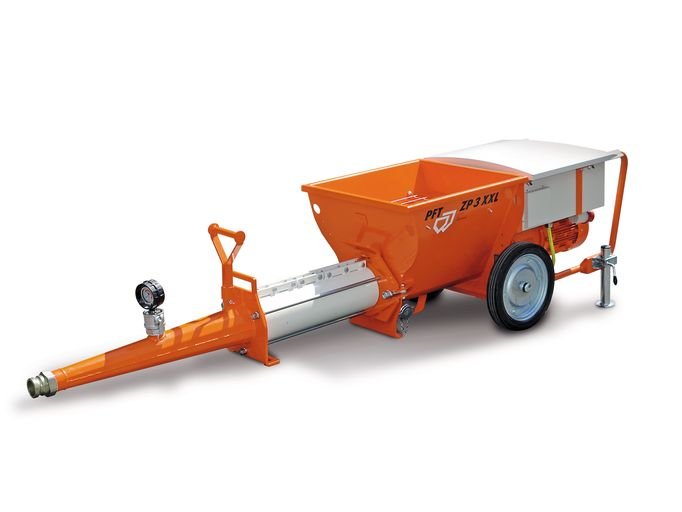

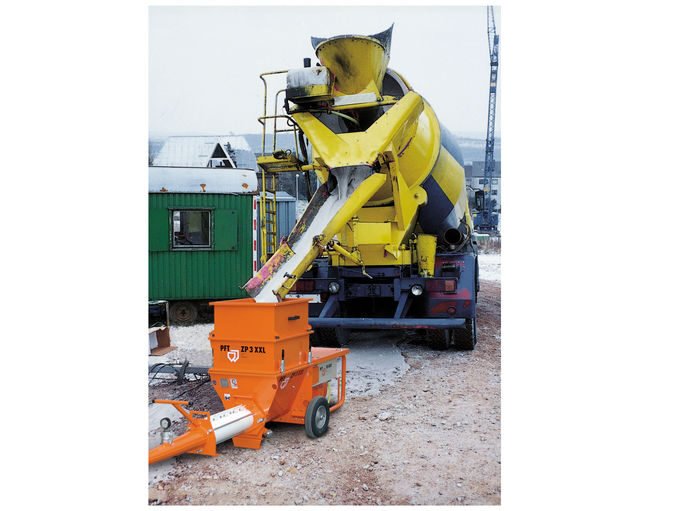

Feed pumps take over the transport of materials to the processing site on the construction site. The feed pumps from PFT are suitable for the processing of all pumpable ready-mixed dry mortars based on lime / cement as well as for wet products, pasty compounds and liquid media. With the ZP 3 family, PFT meets a wide range of requirements. The model ZP 3 XXL FC-400V is a pump for extremely high delivery rates and delivery distances. Special features are the 13 kW drive motor and the long pressure flange for material grains up to 14 mm. The intermediate mortar pump pumps the plaster, masonry mortar or screed mixed by a continuous mixer, compulsory mixer or truck mixer directly onwards. The conveying capacity can be continuously adapted to the material requirements. A remote control is available to switch the PFT ZP 3 XXL FC-400V on and off.

Edit

Electronically infinitely variable
Pump output continuously adjustable via frequency converter
Long pressure flange for material grains up to 14 mm
Large conveying capacity and width
Robust and compact
Solid rubber castors with steel rims
Double gear seal with inspection opening
Cleaning nozzle in the material container
Integrated control unit with vibrator control

Edit

Masonry mortar
Lightweight masonry mortar
Floor screed (from truck mixer)
Leveling weights
Shotcrete

TECHNICAL SPECIFICATIONS

ZP 3 XXL FC-400V 400 V, 3 Ph, 50 Hz

Art.-No .:
00151174
Long pressure flange

Power:

Delivery rate max .:
15 - 180 l / min

Delivery distance up to: 150 m for DN65

Basic equipment:

Connected load:
400 V, 3 Ph, 50 Hz, 13 kW

Drive:
pump motor: 13 kW, 14 - 162 rpm

Material container:
sheet metal

Mortar outlet with mortar pressure gauge:
DN65 male part

Rolls:
2 rolls

Water connection:
not included

Operation and control:
Pump output electronically infinitely variable via frequency converter

Dimensions:

Filling height:
620 mm

Container volume:
130 liters

Length / width / height:
3,075 / 725/745 mm

Total weight:
389 kg

Basic equipment package:

Pump unit:
2 L 8 180 l / min 20 bar

Mortar hose:
not included

Coupling reduction:
not included

Air compressor:
not included

Spray gun / fine plastering device:
not included

Connection cable:
not included

Water / air hose:
not included

ZP 3 XXL FC-400V 400 V, 3 Ph, 50 Hz

Art.-No .:
00417479
Short pressure flange

Power:

Delivery rate max .:
15 - 180 l / min

Delivery distance up to: 150 m for DN65

Basic equipment:

Connected load:
400 V, 3 Ph, 50 Hz, 13 kW

Drive:
pump motor: 13 kW, 14 - 162 rpm

Material container:
sheet metal

Mortar outlet with mortar pressure gauge:
DN65 male part

Rolls:
2 rolls

Water connection:
not included

Operation and control:
Pump output electronically infinitely variable via frequency converter

Dimensions:

Filling height:
620 mm

Container volume:
130 liters

Length / width / height:
3,075 / 725/745 mm

Total weight:
380 kg

Basic equipment package:

Pump unit:
2 L 8 180 l / min 20 bar

Mortar hose:
not included

Coupling reduction:
not included

Air compressor:
not included

Spray gun / fine plastering device:
not included

Connection cable:
not included

Water / air hose:
not included

Brochure: Conveying pump PFT ZP 3 XXL FC-400V

Download
