PFT SAMBA XL

Edit

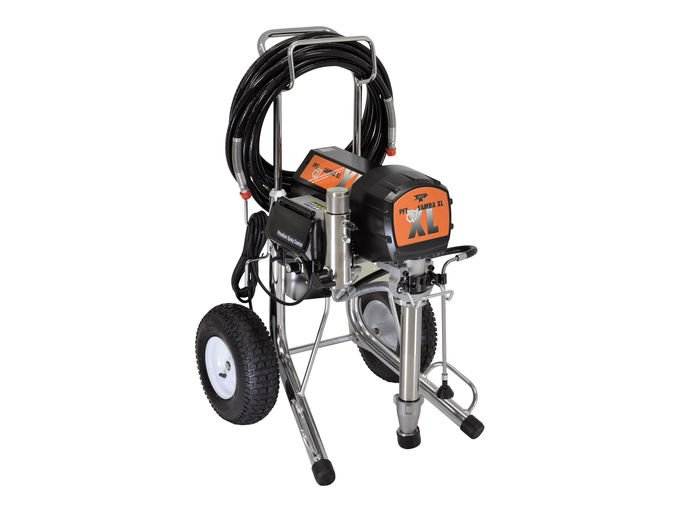

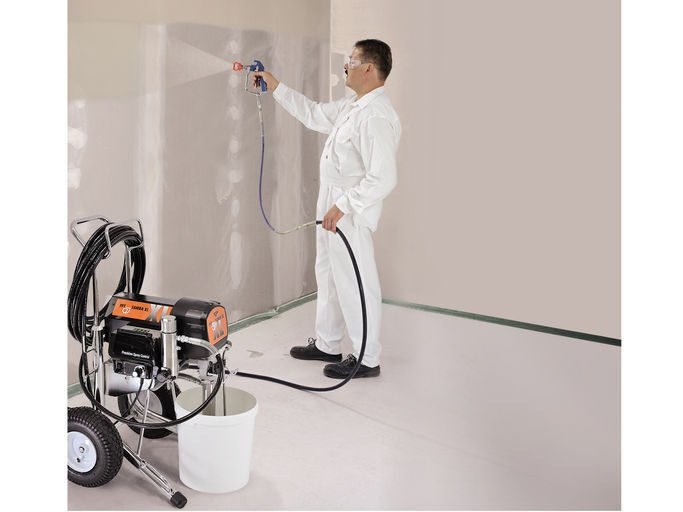

The PFT SAMBA XL airless spray gun is used to apply pasty materials such as paints, varnishes and even fillers precisely and quickly to walls and ceilings using a spray gun. The device works with an electric piston pump, which sucks in the paint through the movement of the piston. A control valve regulates the required working pressure, which is shown on a digital display. The model has a delivery rate of up to 5.5 l/min and is particularly suitable for abrasive, viscous materials. A conversion kit for air-assisted spraying enables attractive surface structures.
Edit

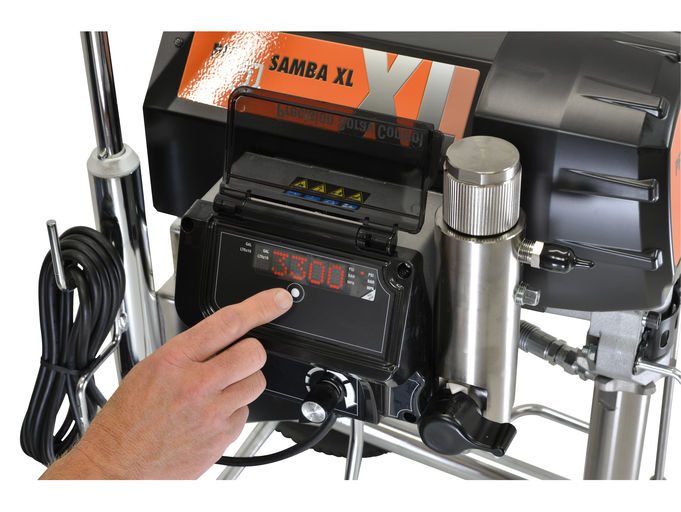

  • SmartControl system and digital display for pressure indication
    (uniform, water-insensitive circuit board)
  • Fast flush cleaning function
  • Especially for abrasive and viscous materials
  • PFT practical tip:
    Filtering is your best protection against premature pump and gun wear , surface defects and clogging of the nozzle.
    The filters ensure you the best material flow and protect against annoying blockages.
    The mesh size is decisive for the material:
    – Fine materials: mesh size 200
    – Coarse materials: mesh size 30
Edit
  • Dispersions
  • Sprayable leveling compounds
  • Corrosion and rust protection
  • Large area roof coating
  • Adhesive and facade paints
  • Silicate paints

TECHNICAL SPECIFICATIONS

Art.-No .:
00601802

Power:

Delivery rate max .:
5.5 l / min

Delivery pressure max .:
227 bar



Basic equipment:

Connection value:
230 V, 1 Ph, 50/60 Hz, 1.65 kW

Drive:
pump motor: 1.65 kW

Pump outlet:
DN9

Rolls:
2 rolls

Nozzle size max .:
max. 0.037 "

Operation and control:
pump output infinitely variable



Dimensions:

Length / width / height:
670/780/730 - 1,020 mm,
height adjustable

Total weight:
~ 58 kg



Basic equipment package:

Conveying
hose : - high pressure hose DN9 (3/8 ") - 15 m
- high pressure hose DN6 (1/4") - 0.9 m

Spray device with nozzle holder:
In Line Texspray DN9 30 °

Spray nozzle:
RAC X 531 and 535

Water / air hose:
not included

Brochure: Airless Spraying Gun PFT Samba XL
