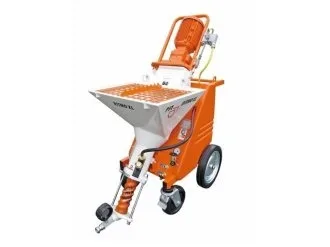

PFT Ritmo XL

Edit

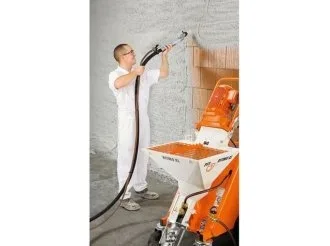

Mixing pumps – also called plastering machines, plastering machines or mortar pumps – continuously and fully automatically process all machine-standard dry mortars based on gypsum, lime and cement with water. PFT offers several model series, including the RITMO family. The machine can be loaded with bucket or bagged goods, can be used as a mixing pump or pump and is operated with a KVA power generator. As a compact RITMO XL, the one-person mixing pump has a powerful drive and is specially designed for pumping, spraying and applying machine-compatible dry mortars, pasty materials and much more with a grain size of up to 7 mm. The pump output of the RITMO XL can be adapted to requirements by quickly changing the pump. Pneumatic filling is guaranteed via an optional injection hood. The extended scope of delivery of the XL includes a water pump as a pressure booster pump. Post mixers such as PFT ROTOMIX or PFT ROTOQUIRL can be integrated. Available as 230 volt and 400 volt version.

Edit

Suitable for bucket and bagged goods
Rubber mixing zone for easy cleaning with interchangeable flange for D and R pumps
Flexible mixing intensity thanks to two water inlets
Can be switched between 230 V and 400 V (only for RITMO XL FC-230 / 400V)
Conical mixing tube for optimal material flow
Prepared for remote control cable
Runs powerfully and reliably with luminous flux
Integrated water pump AV 700 for pressure increase (only with RITMO XL)
Simple, compact and rollable
Adjustable filling height
Easily dismantled into three modules
Tool box including basic accessories
Frequency converter for stepless speed control and amplification of the torque
(only for RITMO XL FC-230V and RITMO XL FC-230 / 400V)

Edit

Machine gypsum plaster
Lime-gypsum plaster
Cement plaster
Masonry mortar
Adhesive and reinforcement mortar
Insulating plaster
Self-leveling screed
Flow spatula

TECHNICAL SPECIFICATIONS

RITMO XL 400 V, 3 Ph, 50 Hz

Art.-No .:
00186478
with booster pump

Power:

Delivery rate max .:
20 l / min

Delivery distance up to:
50 m for leveling compounds
30 m for plaster mortar

Basic equipment:

Connected load:
400 V, 3 Ph, 50 Hz, 5.5 kW
Control voltage: 42 V

Drive:
pump motor: 5.5 kW, 400 rpm

Mixing tube:
rubber mixing tube with interchangeable flange

Mixing helix:
BIONIK RITMO XL machine plaster

Mortar outlet with mortar pressure gauge:
DN25 male part

Castors:
2 castors, 2 swivel castors

Water connection:
Geka DN12 (1/2 ") - 2.5 bar operating pressure

Operation and control:
start / stop

Dimensions:

Filling height:
850 - 1,010 mm

Container volume:
70 liters ~ 2.3 bags (30 kg each)

Length / width / height:
1,300 / 700 / 1,400 mm

Total weight:
224 kg

Basic equipment package:

Pump unit : TWISTER D 6–3 · 20 l / min · 30 bar

Mortar
hose : RONDO DN25 - 10 m

External vibrator:
not included

Water pump to increase pressure:
AV 700, 400 V, 3 Ph, 50 Hz, 0.5 kW

Water flow meter:
150 - 1,500 l / h

Air compressor:
COMP M-250-X0 handy, 400 V, 3 Ph,
50 Hz, 0.9 kW, 250 l / min -
max. 4 bar with pressure cut-off

Spraying device / fine plastering device : DN25-360 ° S14 200 Geka

Connection cable:
not included

Water / air hose:
DN12 (1/2 ") Ewo | Geka - 11 m

RITMO XL FC-230 / 400V 230/400 V, 1/3 Ph, 50 Hz

Art.-No .:
00197821
without pressure booster pump

Power:

Delivery rate max .:
20 l / min

Delivery distance up to:
30 m for leveling compounds
15 m for plaster mortar

Basic equipment:

Connected load : 230/400 V, 1/3 Ph, 50 Hz, 4 kW
Control voltage: 42 V

Drive:
Pump motor: 4 kW, 120 - 400 rpm

Mixing tube:
rubber mixing tube with interchangeable flange

Mixing helix:
BIONIK RITMO XL machine plaster

Mortar outlet with mortar pressure gauge:
DN25 male part

Castors:
2 castors, 2 swivel castors

Water connection:
Geka DN12 (1/2 ") - 2.5 bar operating pressure

Operation and control:
start / stop and stepless speed control in 230 volt operation

Dimensions:

Filling height:
850 - 1,010 mm

Container volume:
70 liters ~ 2.3 bags (30 kg each)

Length / width / height:
1,300 / 700 / 1,400 mm

Total weight:
232 kg

Basic equipment package:

Pump unit : SD 6–3 slimline · 20 l / min · 25 bar

Mortar
hose : RONDO DN25 - 10 m

External vibrator:
not included

Water pump to increase pressure:
not included

Water flow meter:
150 - 1,500 l / h

Air compressor:
COMP P-200, 230 V, 1 Ph, 50 Hz,
0.5 kW, 200 l / min - max. 3.4 bar
with pressure cut-off

Spraying device / fine plastering device : DN25-360 ° S14 200 Geka

Connection cable:
adapter plug RED 5-32 A | BLU 2-16 A

Water / air hose:
DN12 (1/2 ") Ewo | Geka - 11 m

RITMO XL FC-230V 230 V, 1 Ph, 50 Hz

Art.-No .:
00197819
without pressure booster pump

Power:

Delivery rate max .:
20 l / min

Delivery distance up to:
30 m for leveling compounds
15 m for plaster mortar

Basic equipment:

Connected load:
230 V, 1 Ph, 50 Hz, 4 kW
control voltage: 42 V

Drive:
pump motor: 4 kW, 120 - 400 rpm

Mixing tube:
rubber mixing tube with interchangeable flange

Mixing helix:
BIONIK RITMO XL machine plaster

Mortar outlet with mortar pressure gauge:
DN25 male part

Castors:
2 castors, 2 swivel castors

Water connection:
Geka DN12 (1/2 ") - 2.5 bar operating pressure

Operation and control:
start / stop and stepless speed control

Dimensions:

Filling height:
850 - 1,010 mm

Container volume:
70 liters ~ 2.3 bags (30 kg each)

Length / width / height:
1,300 / 700 / 1,400 mm

Total weight:
224 kg

Basic equipment package:

Pump unit : SD 6–3 slimline · 20 l / min · 25 bar

Mortar
hose : RONDO DN25 - 10 m

External vibrator:
not included

Water pump to increase pressure:
not included

Water flow meter:
150 - 1,500 l / h

Air compressor:
COMP P-200, 230 V, 1 Ph, 50 Hz,
0.5 kW, 200 l / min - max. 3.4 bar
with pressure cut-off

Spraying device / fine plastering device : DN25-360 ° S14 200 Geka

Connection cable:
3 x 2.5 mm², BLU 3-16 A | BLA 2-16 A - 25 m

Water / air hose:
DN12 (1/2 ") Ewo | Geka - 11 m
