PFT Silomat Trans Plus

Edit

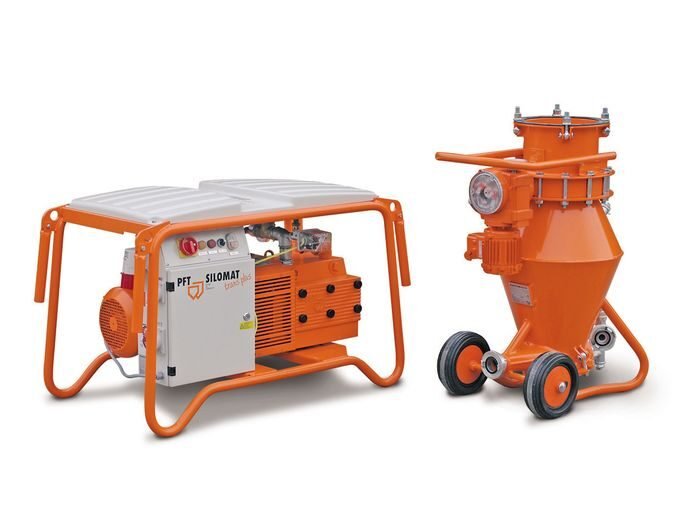

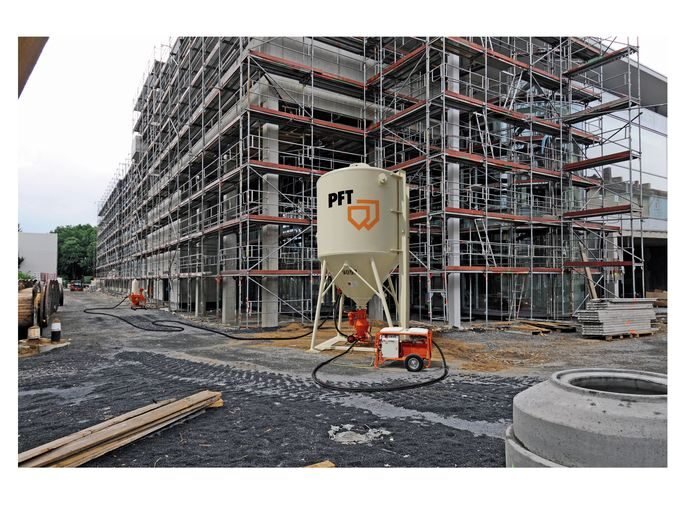

The pneumatic SILOMAT conveyor systems from PFT are designed for the fully automatic, dust-free material transport of the premixed dry mortar from the silo / container to the processing site. Various models are available that cover a wide variety of requirements. The powerful PFT SILOMAT trans plus is optionally available as a system for free-fall or pressure silos. Depending on the design, the conveying distance is well over a hundred meters. When it comes to handling and transport, the SILOMAT trans plus features many auxiliary functions, such as B. integrated crane lifting eyes and fold-out handles. The conveying vessel or pinch valve conveying block can be connected to every container / silo in a few simple steps. The SILOMAT trans plus has a powerful rotary compressor with a capacity of 5.5 or 7.

Edit

Fluidizer: Increases and secures the material flow, the vessel is almost completely emptied

– Maintenance-free
– Resistant to humidity
– Can be retrofitted
– Performance increase of up to 30%

Dry running compressor, no oil change required
Rotary compressor available as rollable and portable version
Crane lifting eyes and fold-out handles
Suitable for container / silo outlet flange Ø 250 mm
Butterfly valve with servomotor and handwheel
Easily exchangeable seals
Bypass: manually controllable for stiff material and longer conveying distances
Long machine running times with high operational reliability
Easy replacement of wear parts

Edit

Machine gypsum plaster
Lime-gypsum plaster
Cement plaster
Lime plaster
Masonry mortar
Bulk goods
Aggregates
Powder material

TECHNICAL SPECIFICATIONS

SILOMAT trans plus 105 - portable 400 V, 3 Ph, 50 Hz

Item no .:
00124365

Power:

Delivery distance:
100 m

Delivery rate:
20 kg / min

Basic equipment:

Power connection:
400 V, 3 Ph, 50 Hz, 5.5 kW

Fuse protection:
32 A
building site distributor with 30 mA residual current circuit breaker required

Connection cable (not included):
5 x 4 mm² - RED 5-32 A

Compressor:
power: 5.5 kW
max. Pressure: 2.5 bar
air volume: 105 Nm³ / h

Dimensions:

Volume of conveying vessel / block:
55 liters

Length / width / height:
1,100 / 635/720 mm

Height of conveying vessel:
980 mm

Weight hopper:
87 kg

Weight of rotary compressor including carrier element:
188 kg

Total weight:
275 kg

SILOMAT trans plus 145 - portable 400 V, 3 Ph, 50 Hz

Art.-No .:
00689524

Power:

Delivery distance:
140 m

Delivery rate:
20 kg / min

Basic equipment:

Power connection:
400 V, 3 Ph, 50 Hz, 7.5 kW

Fuse protection:
32 A
building site distributor with 30 mA residual current circuit breaker required

Connection cable (not included):
5 x 4 mm² - RED 5-32 A

Compressor:
power: 7.5 kW
max. Pressure: 2.5 bar
air volume: 145 Nm³ / h

Dimensions:

Volume of conveying vessel / block:
55 liters

Length / width / height:
1,100 / 635/720 mm

Height of conveying vessel:
980 mm

Weight hopper:
83 kg

Weight of rotary compressor including carrier element:
190 kg

Total weight:
285 kg

SILOMAT trans plus 105 - rollable 400 V, 3 Ph, 50 Hz

Art.-No .:
00124366

Power:

Delivery distance:
100 m

Delivery rate:
20 kg / min

Basic equipment:

Power connection:
400 V, 3 Ph, 50 Hz, 5.5 kW

Fuse protection:
32 A
building site distributor with 30 mA residual current circuit breaker required

Connection cable (not included):
5 x 4 mm² - RED 5-32 A

Compressor:
power: 5.5 kW
max. Pressure: 2.5 bar
air volume: 105 Nm³ / h

Dimensions:

Volume of conveying vessel / block:
55 liters

Length / width / height:
1,100 / 635/720 mm

Height of conveying vessel:
980 mm

Weight hopper:
87 kg

Weight of rotary compressor including carrier element:
188 kg

Total weight:
275 kg

SILOMAT trans plus 145 - rollable 400 V, 3 Ph, 50 Hz

Art.-No .:
00124358

Power:

Delivery distance:
140 m

Delivery rate:
20 kg / min

Basic equipment:

Power connection:
400 V, 3 Ph, 50 Hz, 7.5 kW

Fuse protection:
32 A
building site distributor with 30 mA residual current circuit breaker required

Connection cable (not included):
5 x 4 mm² - RED 5-32 A

Compressor:
power: 7.5 kW
max. Pressure: 2.5 bar
air volume: 145 Nm³ / h

Dimensions:

Volume of conveying vessel / block:
55 liters

Length / width / height:
1,100 / 635/720 mm

Height of conveying vessel:
980 mm

Weight hopper:
87 kg

Weight of rotary compressor including carrier element:
188 kg

Total weight:
275 kg
