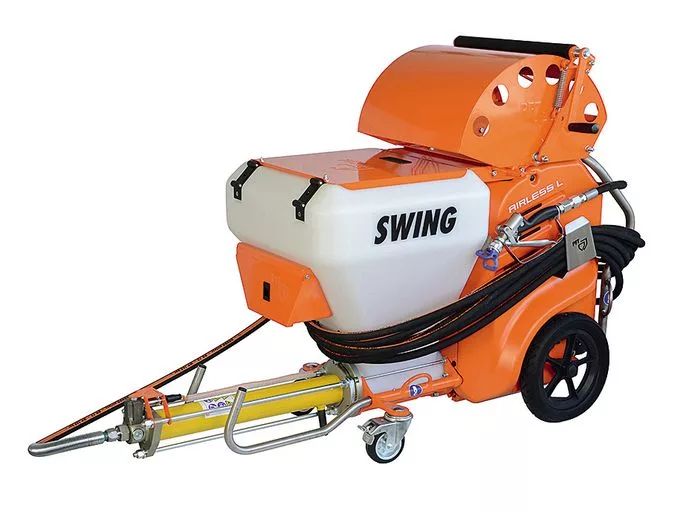

PFT Swing L Airless

Edit

Feed pumps take over the transport of materials to the processing site on the construction site. The feed pumps from PFT are suitable for the processing of all pumpable ready-mixed dry mortars based on lime / cement as well as for wet products, pasty compounds and liquid media. With the SWING family, PFT meets a wide range of requirements. Thanks to RotaAirless technology, the high-pressure pump works without valves. The additional flexing effects improve the spray quality. The delivery rate is infinitely variable. Thin, pumpable and solvent-free materials up to a maximum grain size of 6 mm can be pumped, pressed and sprayed. It is filled from a bucket or a continuous mixer. In conjunction with an air compressor and a spray device, the SWING L airless can also be used to apply plasters and paints.

Edit

Kink protection at the machine outlet
Electronically infinitely variable
One-piece material container without undercuts, hardly any material build-up – quick and easy cleaning
Deep protection against trapping
Fast pump changes on the construction site
Control elements clearly laid out and easily accessible
Integrated hose holder
Material filter
Puncture-proof wheels
Valveless pump – RotaAirless technology:

– Improved spray quality thanks to the additional flexing effect in the pump

Pressure control via digital display
No-load protection – increases the service life of the pump
Up to 40 meters delivery distance – flexible hose with kink protection at the machine outlet
Variety of possible uses: spray filler, granular material up to 3 mm, paint
Quiet, compact and powerful
Easy construction site handling
Robust construction suitable for the construction site

Edit

Spray filler
Granular material up to 3 mm
Colour

TECHNICAL SPECIFICATIONS

SWING L FC-400V airless 400 V, 3 Ph, 50 Hz

Art.-No .:
00531453
without sack defect

Power:

Delivery rate max .:
0 - 8.5 l / min

Delivery distance up to:
40 m for DN12

Basic equipment:

Connected load:
400 V, 3 Ph, 50 Hz, 4 kW

Drive:
pump motor: 4 kW, 0-320 rpm

Material container:
plastic

Mortar discharge with mortar pressure manometer:
sensor with digital display

Castors:
2 swivel castors, 2 castors

Water connection:
not included

Operation and control:
pump output continuously adjustable via potentiometer, working pressure range adjustable

Dimensions:

Filling height:
700 mm

Container volume:
70 liters

Length / width / height:
1,430 / 500/720 mm

Total weight:
110 kg

Basic equipment package:

Pump unit : 306 airless 8.5 l / min 140 bar

Mortar
hose : RONDO airless DN12 - 20 m (2x)

Coupling reduction:
not included

Air compressor:
not included

Spraying device / fine plastering device : In Line Texspray - nozzle 541

Connection cable:
RED 5-16 A

Water / air hose:
not included

SWING L FC-400V airless 400 V, 3 Ph, 50 Hz

Art.-No .:
00531348
with sack shortage

Power:

Delivery rate max .:
0 - 8.5 l / min

Delivery distance up to:
40 m for DN12

Basic equipment:

Connected load:
400 V, 3 Ph, 50 Hz, 4 kW

Drive:
pump motor: 4 kW, 0-320 rpm

Material container:
plastic

Mortar discharge with mortar pressure manometer:
sensor with digital display

Castors:
2 swivel castors, 2 castors

Water connection:
not included

Operation and control:
pump output continuously adjustable via potentiometer, working pressure range adjustable

Dimensions:

Filling height:
700 mm

Container volume:
70 liters

Length / width / height:
1,430 / 500/720 mm

Total weight:
110 kg

Basic equipment package:

Pump unit : 306 airless 8.5 l / min 140 bar

Mortar
hose : RONDO airless DN12 - 20 m (2x)

Coupling reduction:
not included

Air compressor:
not included

Spraying device / fine plastering device : In Line Texspray - nozzle 541

Connection cable:
RED 5-16 A

Water / air hose:
not included

SWING L FC-230V airless 230 V, 1 Ph, 50 Hz

Art.-No .:
00451336
without the bag shortage

Power:

Delivery rate max .:
0 - 6.5 l / min

Delivery distance up to:
30 m for DN12

Basic equipment:

Connection value:
230 V, 1 Ph, 50 Hz, 3 kW

Drive:
pump motor: 3 kW, 0 - 280 rpm

Material container:
plastic

Mortar discharge with mortar pressure manometer:
sensor with digital display

Castors:
2 swivel castors, 2 castors

Water connection:
not included

Operation and control:
pump output continuously adjustable via potentiometer, working pressure range adjustable

Dimensions:

Filling height:
700 mm

Container volume:
70 liters

Length / width / height:
1,430 / 500/720 mm

Total weight:
100 kg

Basic equipment package:

Pump unit : 306 airless 6.5 l / min 140 bar

Mortar
hose : RONDO airless DN12 - 20 m

Coupling reduction:
not included

Air compressor:
not included

Spraying device / fine plastering device : In Line Texspray - nozzle 541

Connection cable:
3 x 1.5 mm², BLU 2-16 A - 5 m

Water / air hose:
not included

SWING L FC-230V airless 230 V, 1 Ph, 50 Hz

Art.-No .:
00451335
with sack shortage

Power:

Delivery rate max .:
0 - 6.5 l / min

Delivery distance up to:
30 m for DN12

Basic equipment:

Connection value:
230 V, 1 Ph, 50 Hz, 3 kW

Drive:
pump motor: 3 kW, 0 - 280 rpm

Material container:
plastic

Mortar discharge with mortar pressure manometer:
sensor with digital display

Castors:
2 swivel castors, 2 castors

Water connection:
not included

Operation and control:
pump output continuously adjustable via potentiometer, working pressure range adjustable

Dimensions:

Filling height:
700 mm

Container volume:
70 liters

Length / width / height:
1,430 / 500/720 mm

Total weight:
100 kg

Basic equipment package:

Pump unit : 306 airless 6.5 l / min 140 bar

Mortar
hose : RONDO airless DN12 - 20 m

Coupling reduction:
not included

Air compressor:
not included

Spraying device / fine plastering device : In Line Texspray - nozzle 541

Connection cable:
3 x 1.5 mm², BLU 2-16 A - 5 m

Water / air hose:
not included

PFT Swing L Airless

TECHNICAL SPECIFICATIONS

Brochure: BAZOOKA® – PFT adapter system

Brochure: Coneying pump PFT SWING L FC-400V airless

Brochure: Conveying pump PFT SWING L FC-230V airless
