PFT Cutmaster

Edit

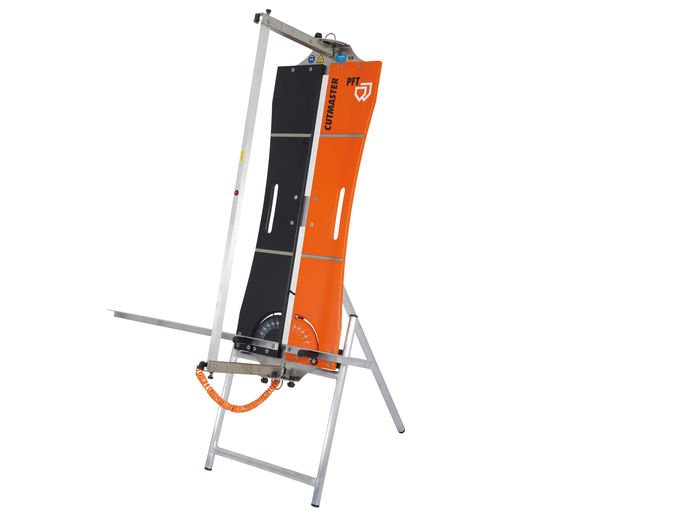

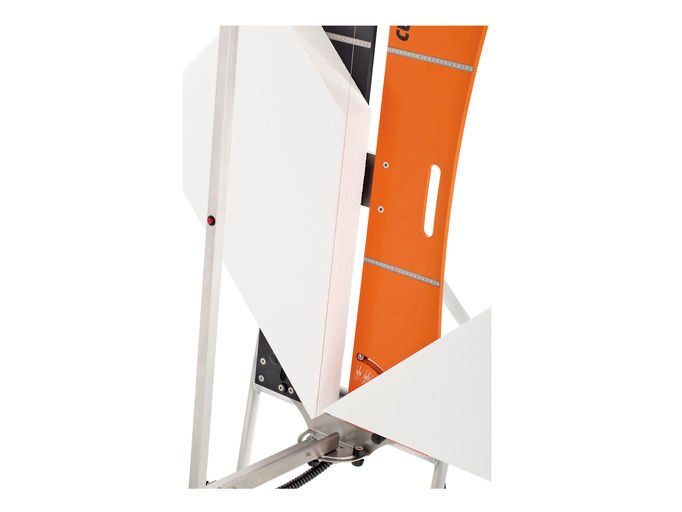

The hot wire cutter PFT CUTMASTER is ideal for the precise processing of insulation boards. A wide variety of formats and cuts can be implemented with the handy, robust device. Cutting bracket, support bracket and depth stop can be locked steplessly. Assembly and dismantling are done quickly, a station wagon is sufficient for transport. The CUTMASTER can be used in all indoor and outdoor areas and guarantees perfect insulation of the facade, even in difficult areas.

Edit

Locking of the cutting depth with a length scale
Angle settings, left – adjust and fix the cutting bar continuously from 0 to 45 °
PUR spiral cable with anti-kink screw connection – no sagging
Spare cutting wire, 10 m on the back

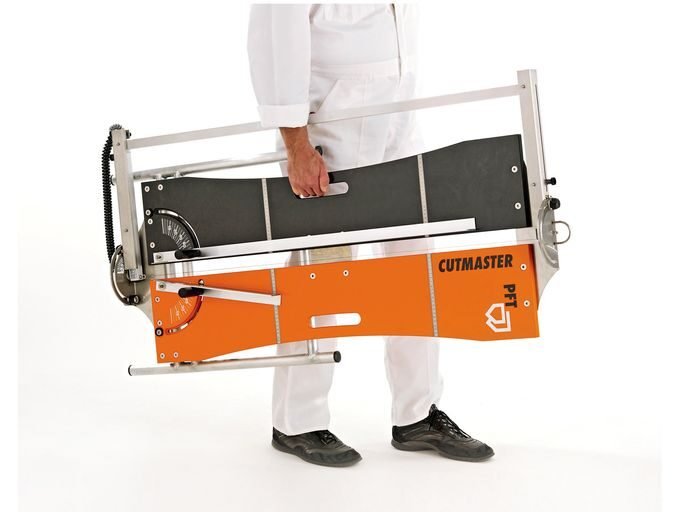

Transport in a station wagon
Welded, robust cutting bracket made of aluminum
Aluminum support bracket, right and left – continuously adjust and lock in the range from 0 to 90 °
Longitudinal rulers, countersunk and scrubbable – depending on the version
Depth stop with clamping screw – lockable depth stop stops the cutting bow
Crane transport with eye and hook
Even when folded, the CUTMASTER stands on its feet – no scratching
Safe and powerful – double-fused transformer.

Edit

Thermal insulation in the entire interior and exterior area
Perfect insulation of the facade even in difficult places, e.g. B. eaves or window sills

TECHNICAL SPECIFICATIONS

CUTMASTER 1100/250

Item no .:
00457912

Power:

Cutting height:
1,110 mm

Cutting depth at 90 °:
250 mm

Basic equipment:

Transformer:
Primary 230 V, 50 Hz
Secondary 28 V
power 150 VA
Protection against splashing water on all sides

Double-fused transformer -
safe and powerful:
Ensures high cutting speed
and short heat-up times

Miter cuts on the side:
Cutting bracket can be
swiveled up to 45 ° on the left,
lockable with a fixing screw

Cutting bar:
aluminum welded with integrated push button

Feet:
Foldable, free-standing work
with a third removable foot (optional)

Aluminum support bracket length:

left / right: 980/400mm

Base plate:
screen printing plate , coated

Dimensions:

Dimensions for transport D / W / H:
190/500 / 1,350 mm

Weight:
~ 13 kg

CUTMASTER 1100/310

Item no .:
00256638

Power:

Cutting height:
1,110 mm

Cutting depth at 90 °:
310 mm

Basic equipment:

Transformer:
Primary 230 V, 50 Hz
Secondary 28 V
power 150 VA
Protection against splashing water on all sides

Double-fused transformer -
safe and powerful:
Ensures high cutting speed
and short heat-up times

Miter cuts on the side:
cutting bracket can be
swiveled
to the right and left by up to 45 ° , lockable with a fixing screw

Cutting bar:
aluminum welded with integrated push button

Feet:
Foldable, free-standing work
with a third removable foot

Aluminum support bracket length: left / right: 980/420
mm
including length scale

Base plate:
multi-layer painted - waterproof

Dimensions:

Dimensions for transport D / W / H:
190/700 / 1,350 mm

Weight:
~ 17 kg

CUTMASTER 1100/310 with rafter cutter

Item no .:
00419549

Power:

Cutting height:
1,110 mm

Cutting depth at 90 °:
310 mm

Basic equipment:

Transformer:
Primary 230 V, 50 Hz
Secondary 28 V
power 150 VA
Protection against splashing water on all sides

Double-fused transformer -
safe and powerful:
Ensures high cutting speed
and short heat-up times

Miter cuts on the side:
cutting bracket can be
swiveled
to the right and left by up to 45 ° , lockable with a fixing screw

Cutting bar:
aluminum welded with integrated push button

Feet:
Foldable, free-standing work
with a third removable foot

Aluminum support bracket length: left / right: 980/420
mm
including length scale

Base plate:
multi-layer painted - waterproof

Dimensions:

Dimensions for transport D / W / H:
190/700 / 1,350 mm

Weight:
~ 20 kg

Basic equipment package:

Rafter cutter:
including item no. 00419552
