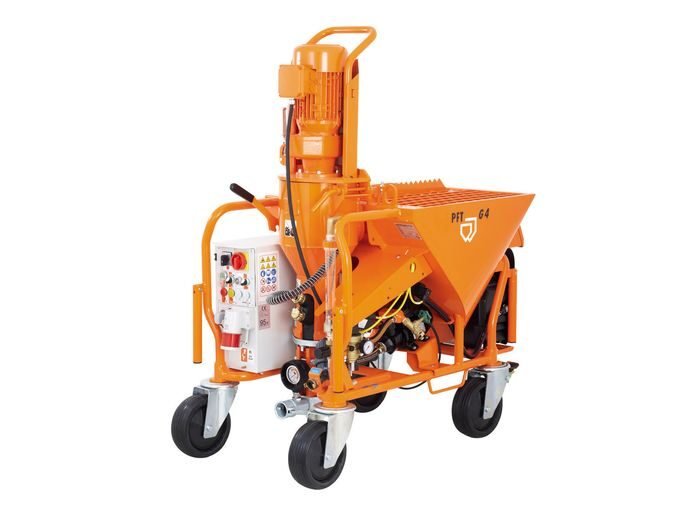

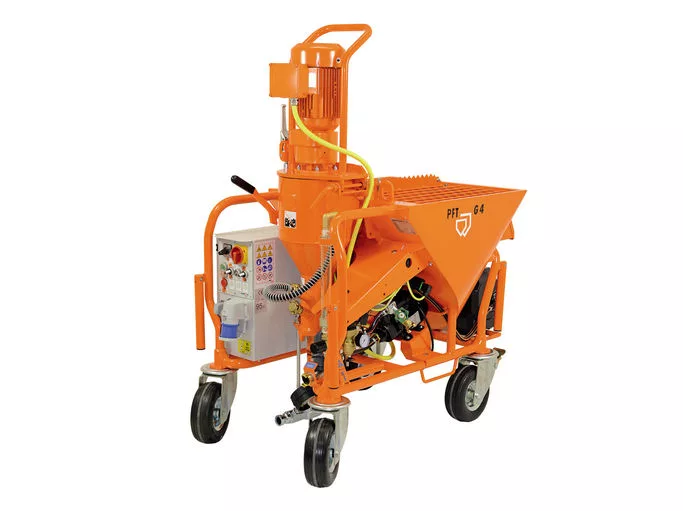

PFT G4 FC 230V

Edit

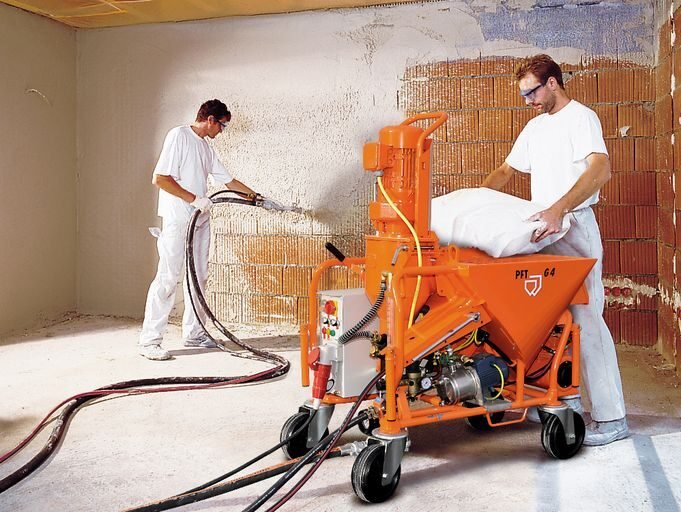

Mixing pumps – also called plastering machines or mortar pumps – of type PFT G 4 are suitable for all machine-standard dry mortars based on gypsum, lime and cement. The material container is separated from the mixing and pumping unit. The continuously and fully automatic G 4 can be started up and refilled at any time. It can be filled with bagged goods but also with a transfer hood directly from the silo / container or with an injection hood and PFT SILOMAT system. The PFT G 4 offers high conveying capacity and conveying distance and can be combined with the entire PFT machine program. The FC-230V version is ideal for renovation and renovation. A frequency converter (FC) ensures stepless speed control and amplification of the torque.

Edit

Switches and connections are within the basic construction
Reinforced tubular frame and robust wheel mount
Forklift lugs and crane eyes
Wind deflector – reduction of dust exposure
Large control cabinet – easy to maintain and dust protection
Simple, quick and efficient – loading the machine with material:

-Direct filling from the silo using a transfer hood

-Filling with bagged goods

-Pneumatic filling from the silo using the PFT SILOMAT conveyor system

Trouble-free operation thanks to the large fine water filter
Practical transport lock for the mixing tube, reduces the machine height
Mixing tube without interchangeable flange for D pumps
Flexible mixing intensity thanks to two water inlets
Frequency converter (FC) for stepless speed control
Safe transport thanks to four handles with folding mechanism
Perfectly maintenance-friendly – the water fitting and pressure switch are easily accessible.

Edit

Gypsum / gypsum lime plaster
Lime-cement plaster
Light plaster
Adhesive / reinforcement mortar
Frame grouting mortar
Scratch plaster
Self-leveling screed
Clay plaster
Masonry mortar
Finishing plaster
Insulating plaster
Fire protection mortar
Floor leveling compounds

TECHNICAL SPECIFICATIONS

G 4 FC-230V 230 V, 1 Ph, 50 Hz

Art.-No .:
00268143
with booster pump

Power:

Delivery rate max .:
35 l / min

Delivery distance up to: 15 m for DN25

Basic equipment:

Connected load:
230 V, 1 Ph, 50 Hz, 4 kW
control voltage: 42 V

Drive:
Pump motor: 4 kW, 400 rpm
2-stage gear with tilt
switch Cell wheel motor : 0.3 kW, 12 rpm

Mixing tube:
Mixing tube without an interchangeable flange

Mixing helix:
BIONIK G 4 machine plaster

Mortar outlet with mortar pressure gauge:
DN25 male part

Castors:
2 swivel castors, 2 double-stop swivel castors

Water connection:
Geka DN19 (3/4 ") - 2.5 bar operating pressure

Operation and control:
start / stop including water pump control and stepless speed control

Dimensions:

Filling height:
910 mm

Container volume:
145 liters ~ 5 bags (each 30 kg)

Length / width / height:
1,200 / 720 / 1,530 mm

Total weight:
287 kg

Basic equipment package:

Pump unit : SD 6–3 slimline · 20 l / min · 25 bar

Mortar
hose : RONDO DN25 - 10 m

Water pump to increase pressure:
AVO 500
230 V, 1 Ph, 50 Hz, 0.37 kW

Water flow meter:
150 - 1,500 l / h

Air compressor:
COMP P-200, 230 V, 1 Ph, 50 Hz,
0.5 kW, 200 l / min - max. 3.4 bar with pressure cut-off

Spraying device / fine plastering device : smartline DN25 F14 200 Geka

Connection cable:
3 x 4 mm², BLU 3-32 A - 25 m adapter cable
BLU 3-32 A - 25 m | BLU 2-16 A - 1 m

Water / air hose:
DN12 (1/2 ") Ewo | Geka - 11 m

G 4 FC-230V 230 V, 1 Ph, 50 Hz

Art.-No .:
00402118
without booster pump

Power:

Delivery rate max .:
35 l / min

Delivery distance up to: 15 m for DN25

Basic equipment:

Connected load:
230 V, 1 Ph, 50 Hz, 5.5 kW
control voltage: 42 V

Drive:
Pump motor: 5.5 kW, 400 rpm
2-stage gear with tilt
switch Cell wheel motor : 0.3 kW, 12 rpm

Mixing tube:
Mixing tube without an interchangeable flange

Mixing helix:
BIONIK G 4 machine plaster

Mortar outlet with mortar pressure gauge:
DN25 male part

Castors:
2 swivel castors, 2 double-stop swivel castors

Water connection:
Geka DN19 (3/4 ") - 2.5 bar operating pressure

Operation and control:
start / stop including water pump control and stepless speed control

Dimensions:

Filling height:
910 mm

Container volume:
145 liters ~ 5 bags (each 30 kg)

Length / width / height:
1,200 / 720 / 1,530 mm

Total weight:
289 kg

Basic equipment package:

Pump unit : SD 6–3 slimline · 20 l / min · 25 bar

Mortar
hose : RONDO DN25 - 10 m

Water pump to increase pressure:
not included

Water flow meter:
100 - 1,000 l / h

Air compressor:
COMP P-200, 230 V, 1 Ph, 50 Hz,
0.5 kW, 200 l / min - max. 3.4 bar with pressure cut-off

Spraying device / fine plastering device : smartline DN25 F14 200 Geka

Connection cable:
3 x 4 mm², BLU 3-32 A - 25 m adapter cable
BLU 3-32 A - 25 m | BLU 2-16 A - 1 m

Water / air hose:
DN12 (1/2 ") Ewo | Geka - 11 m

Brochure: Mixing pump PFT G 4 FC-230V

Download
