Standard Concrete Mixer

Edit

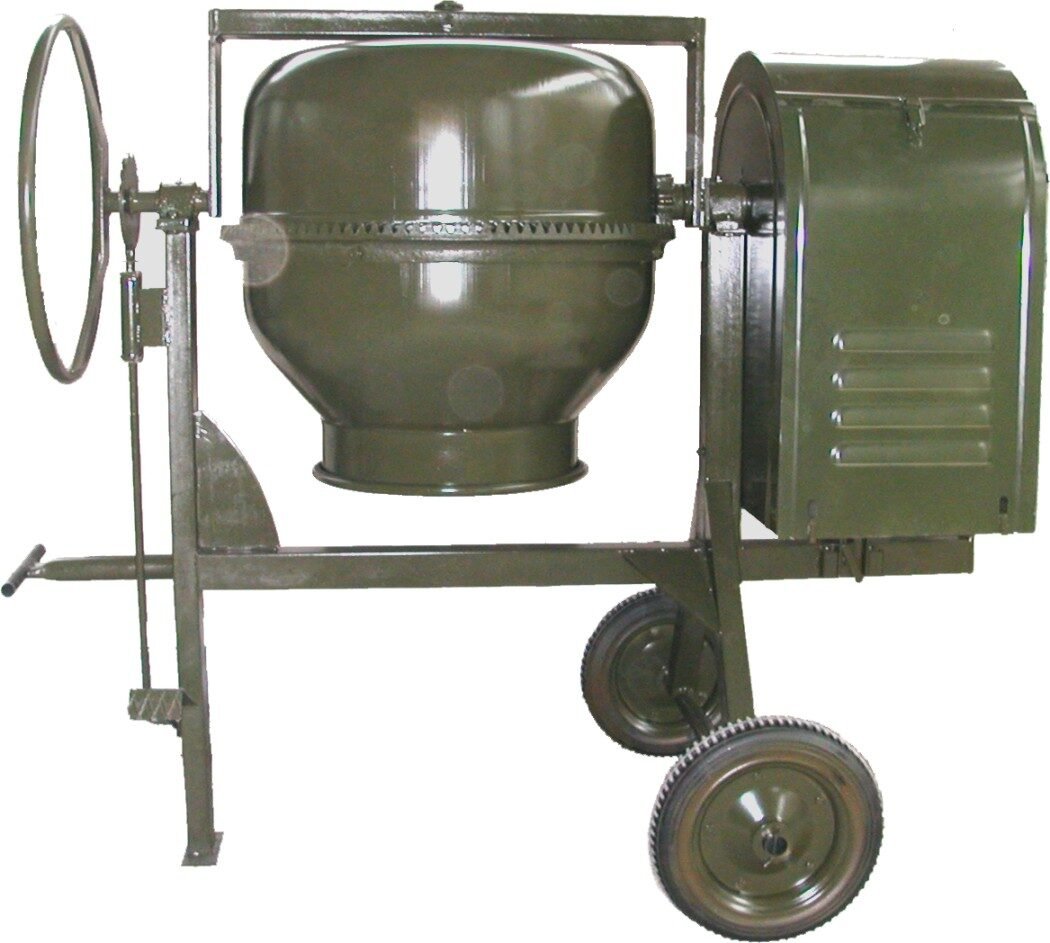

A simpler version of the concrete mixer with a capacity of 210 liters. Reinforced at all critical points of wear. Ideal tool for every professional and amateur, thanks to its trouble-free operation and reliability.

Edit

Reinforced mixing bucket 1.5mm thick
Sturdy frame made of hollow structural section
Aid to the steel skeleton at critical points
Steel hoop in the mixing bucket
Steel canopy frame with two lids for ease of use
Cast iron gears not plastic
Hollow structural section beam arm (not pressed tube) with 12mm blade and extra ring at the point of rotation
30mm bucket shaft detachable not glued
Tapered bearings on the mixing bucket shaft for long life
Pillow block bearing with grease nipples
Aluminum pulley with a grooved rim around the outside
Reinforced hub made of reinforced steel tube and not pipe in the mixing bucket
Base ready with holes for electric or gasoline engine
Height-adjustable base for stretching the drive belt
Large wheels with metal rim and solid tire for easy movement
Version with inflatable wheels and towbar (upon request)
Version with stainless steel mixing bucket for special applications (upon request)
Easy maintenance thanks to standard spare parts

Edit

Coatings and mortars of all types.
Cement mortars etc.
In foods with stainless steel bucket.

Technical Specification

Standard Concrete Mixer

Capacity: 170 lit

Height: 1.33 m

Length: 1.48 m

Width: 0.90 m

Weight: 117 kgr (without engine)
