PFT HM 2002

Edit

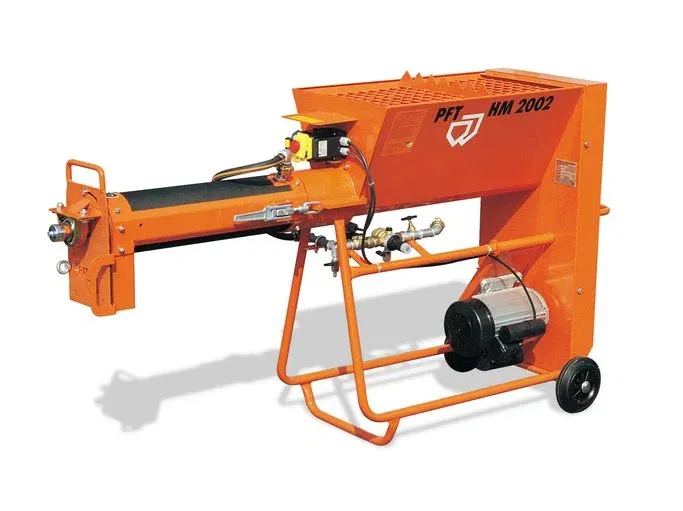

The horizontal PFT continuous mixers of the HM series – also known as mortar mixers – continuously and fully automatically mix all cement-based dry mortars (e.g. masonry mortar, joint mortar, leveling compounds, adhesive / reinforcement mortar) into a ready-to-use material. The machine is characterized by all-round qualities, easy handling and a maintenance-friendly belt drive. Depending on the series version, the continuous mixers can be used either only with bagged goods or optionally with bagged or silo goods or only with silo goods. The HM 2002 version is a continuous mixer for bagged goods. It is equipped with a rubber mixing tube and has an integrated control with a solenoid valve. The machine is suitable for all premixed dry mortars up to a maximum grain size of 4 mm.

Edit
  • Low filling height
  • Secured quick release
  • Maintenance-free square outer bearing
  • Rubber mixing tube
  • Ideally suited for processing adhesive mortar
  • Hardly any caking of the material
  • Improved mixing quality
  • Easy and thorough cleaning
  • Little wear
  • Inexpensive wear part
  • Robust construction
  • Easy handling
  • Minimal maintenance and cleaning effort
  • Easily dismantled into individual parts for convenient transport
  • Removable special mortar outlet
Edit
  • Wall mortar and lightweight masonry mortar
  • Facing mortar
  • Scratch plaster
  • Cement plaster
  • Insulating plaster
  • Screed mortar
  • Tile and grout
  • Adhesive and reinforcement mortar
  • Leveling compound
  • Rubbed plaster
  • Lime plaster
  • Renovation plaster
  • Fine plaster

TECHNICAL SPECIFICATIONS

Item no .:
00020473

Power:

Mixing capacity:
30 l / min

Maximum grain size:
4 mm



Basic equipment:

Connection value:
230 V, 1 Ph, 50 Hz, 2.2 kW

Drive motor:
2.2 kW, 280 rpm

Mixing tube:
rubber mixing tube

Base:
fixed

Roles:
2 roles

Water connection:
Geka DN12 (1/2 ") - 2.5 bar operating pressure

Operation and control:
start / stop



Dimensions:

Filling height:
1,000 mm

Container volume:
110 liters ~ 3.5 bags (30 kg each)

Spout height:
600 mm

Length / width / height:
1,870 / 600 / 1,040 mm

Total weight:
100 kg



Basic equipment package:

Water flow meter:
not included

Dosing shaft:
30 l / min

Booster pump:
not included

Connection cable:
not included

Water / air hose:
not included

Silo / container handover:
not possible
