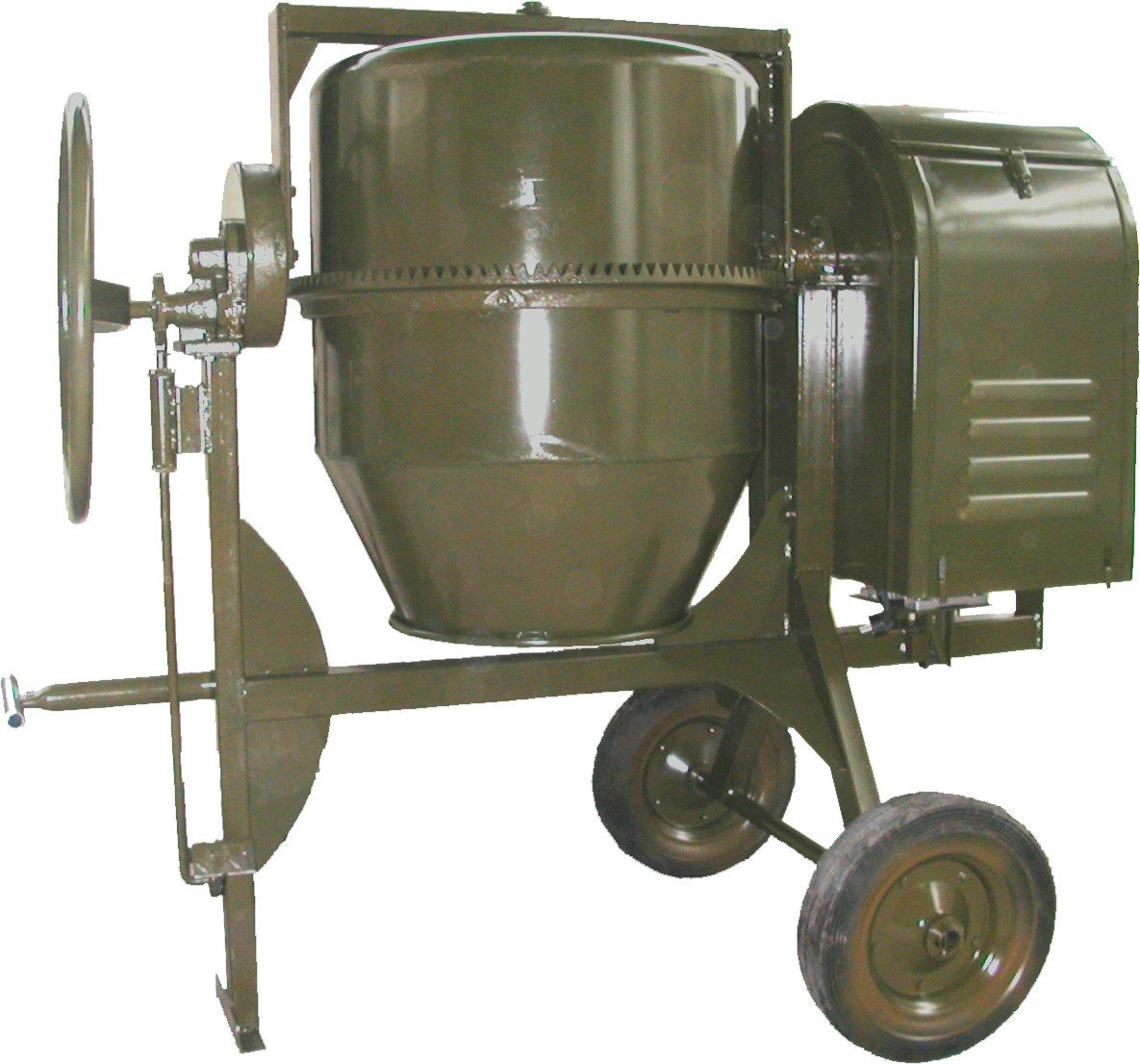

Professional Concrete Mixer

Edit

Professional type of concrete mixer for every use where increased production volume and great strain are required. Reinforced at all critical points of wear. Ideal tool for any professional thanks to its trouble-free operation and reliability.

Edit

Reinforced mixing bucket of our patent, 2mm thick with bottom 2.5mm thick
Solid hoop in mixing bucket

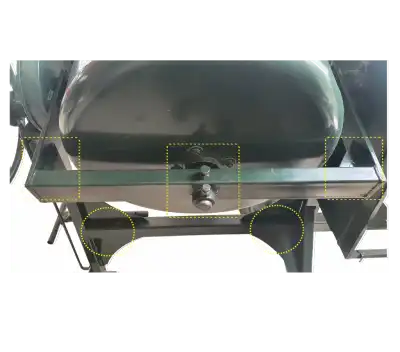

Sturdy frame made of hollow structural section
Aid to the steel skeleton at critical points
Steel canopy frame with two lids for ease of use
Cast iron gears not plastic
Hollow structural section beam arm (not pressed tube) with 12mm blade and extra ring at the point of rotation
35mm bucket shaft detachable not glued
Tapered bearings on the mixing bucket shaft for long life
Pillow block bearing with grease nipples

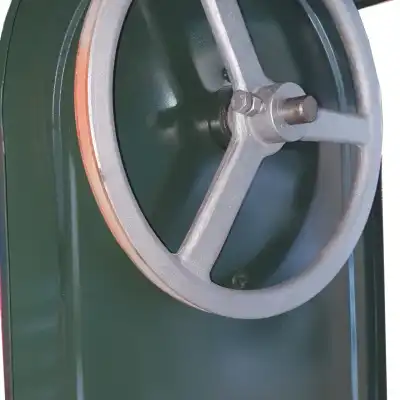

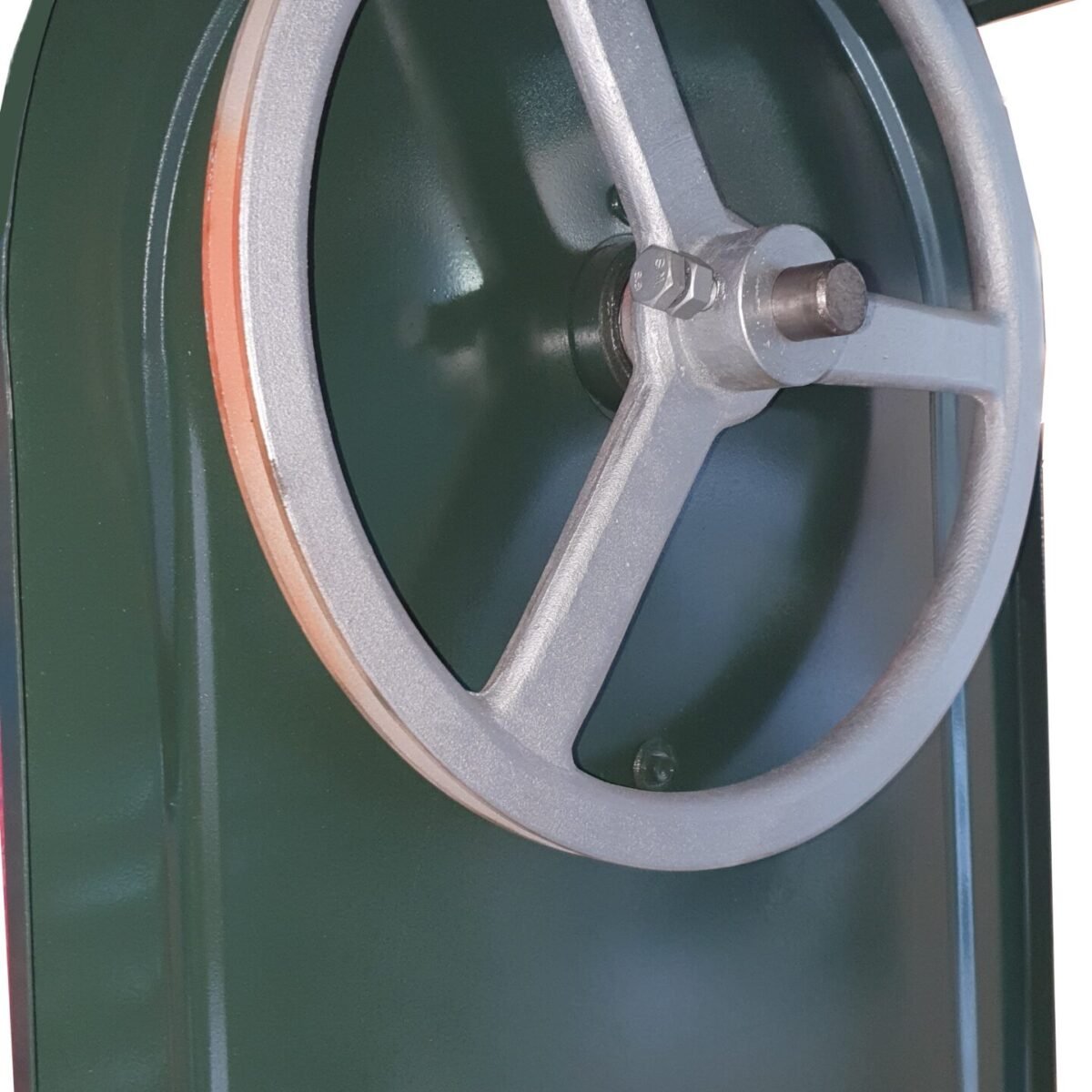

Aluminum pulley with a grooved rim around the outside

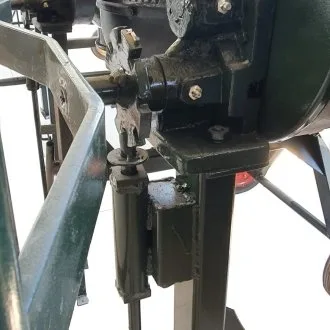

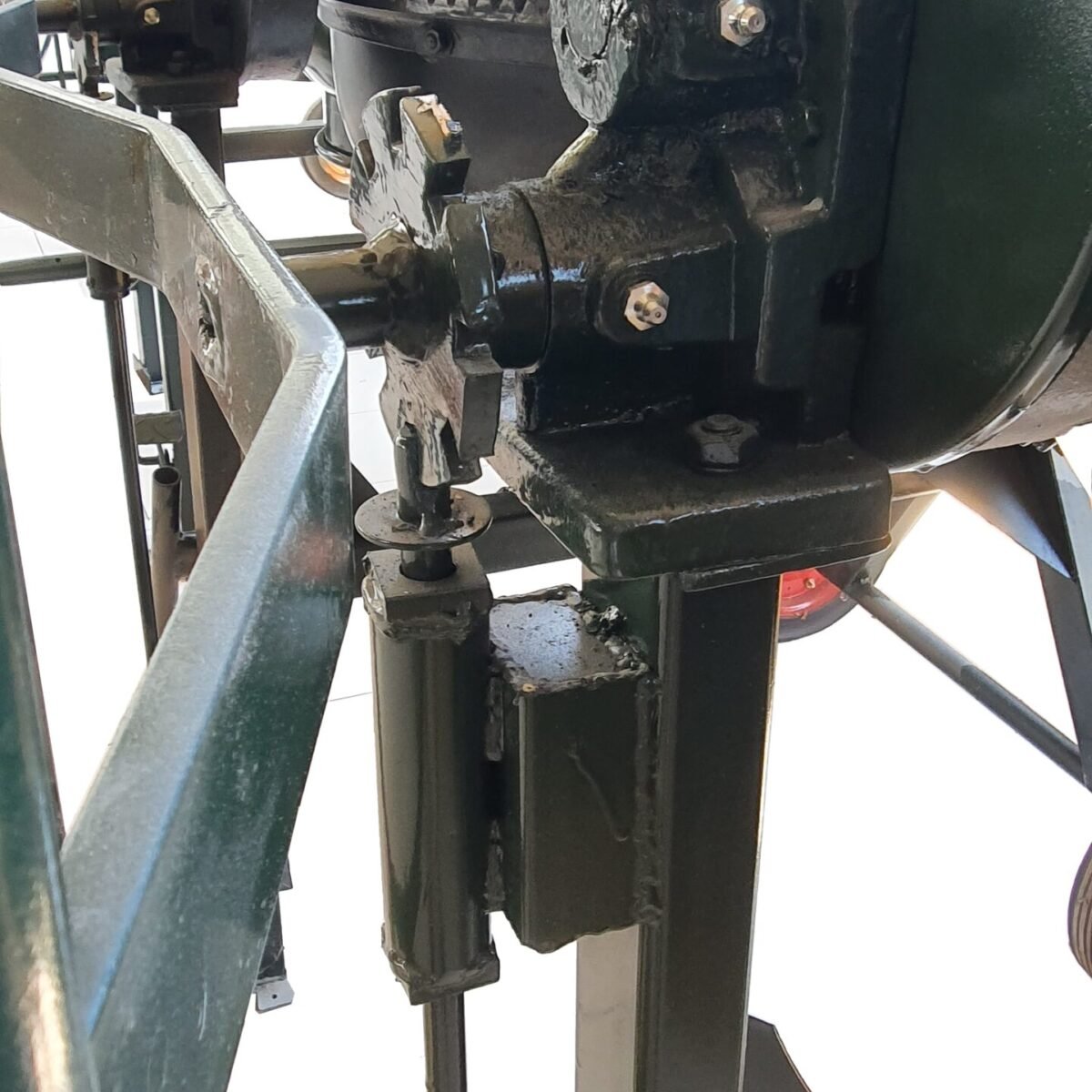

Heavy duty cast iron reducer 1/3 weight reduction when emptying the material
Reinforced hub made of reinforced steel tube and not pipe in the mixing bucket
Base ready with holes for electric or gasoline engine
Height-adjustable base for stretching the drive belt
Large wheels with metal rim and solid tire for easy movement
Version with inflatable wheels and towbar (upon request)
Version with inflatable wheels and towbar (upon request)
Version with stainless steel mixing bucket for special applications (upon request)
Easy maintenance thanks to standard spare parts

Edit

Technical Specification

Professional Concrete Mixer

Capacity: 240lit

Height: 1.43m

Length: 1.55m

Width: 0.90m

Weight: 170kgr (without engine)
