PFT Silomat Trans Plus Bag

Edit

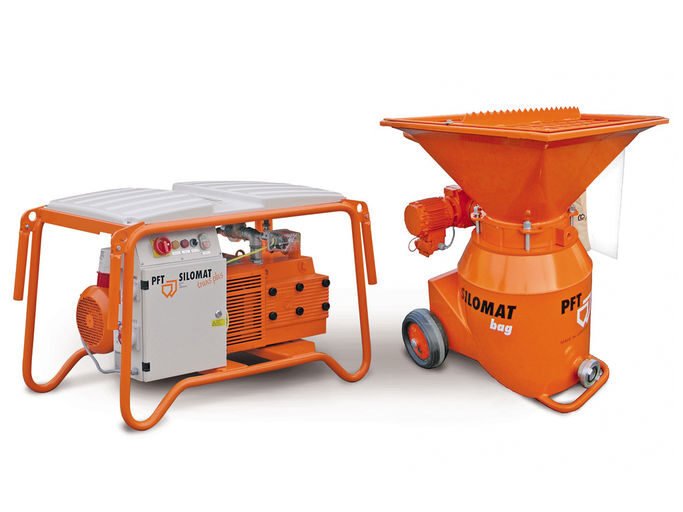

The pneumatic SILOMAT conveyor systems from PFT are designed for the fully automatic, dust-free material transport of the premixed dry mortar from the silo / container to the processing site. Various models are available that cover a wide variety of requirements. The compact PFT SILOMAT trans plus bag is a conveyor system for filling sacks or silos. With a large conveying distance, it is ideal for construction sites without a silo space. The bucket with bag ripper offers a low filling height. The innovative ventilation ensures dust-free work and a complete container filling. The SILOMAT trans plus has a powerful rotary compressor with 7.5 kW. With a PFT accessory part, the conveyor system can be converted to use with silo technology.

Edit

Easy transport of large amounts of material without a silo
Fluidizer: Increases and secures the material flow, the vessel is almost completely emptied

– Maintenance-free
– Resistant to humidity
– Can be retrofitted
– Performance increase of up to 30%

Dry running compressor, no oil change required
Crane lifting eyes and fold-out handles
Suitable for container / silo outlet flange Ø 250 mm
Easily exchangeable seals
Support for pallet trucks
Mounting for forklifts
Bypass: manually controllable for stiff material and longer conveying distances
Long machine running times with high operational reliability
Easy replacement of wear parts
Butterfly valve with servomotor and handwheel
Rotary compressor available as rollable and portable version.

Edit

Lime-gypsum plaster
Cement plaster
Machine gypsum plaster
Masonry mortar
Lime plaster
Bulk goods
Aggregates
Powder material
Lime-cement plaster

TECHNICAL SPECIFICATIONS

SILOMAT trans plus bag 145 400 V, 3 Ph, 50 Hz

Item no .:
00689527

Power:

Delivery distance:
140 m

Delivery rate:
20 kg / min

Basic equipment:

Power connection:
400 V, 3 Ph, 50 Hz, 7.5 kW

Fuse protection:
32 A
building site distributor with 30 mA residual current circuit breaker required

Connection cable (not included):
5 x 4 mm² - RED 5-32 A

Compressor:
power: 7.5 kW
max. Pressure: 2.5 bar
air volume: 145 Nm³ / h

Dimensions:

Volume of the conveying vessel / block:
60 liters

Length / width / height:
1,100 / 635/720 mm

Height of conveying vessel:
980 mm

Weight hopper:
92 kg

Weight of the rotary compressor including carrier element:
202 kg

Total weight:
294 kg
