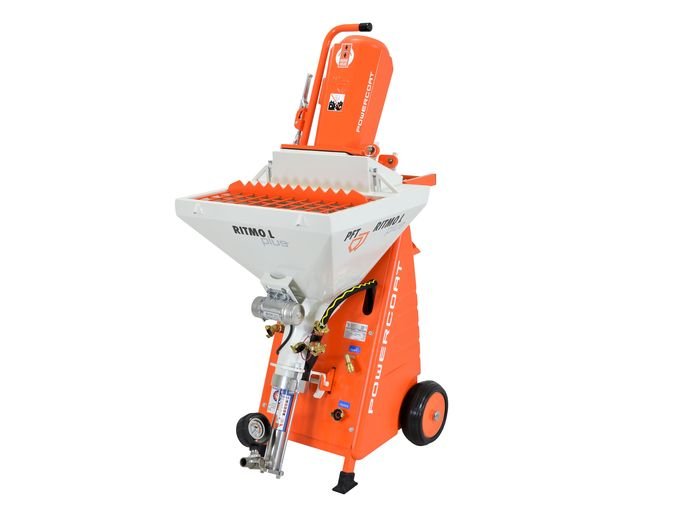

PFT Ritmo L Plus Powercoat

Edit

The proven PFT RITMO L plus is equipped with a revolutionary post mixer made of stainless steel, which makes it possible to grind nodules mechanically.
In this way, a homogeneous, sprayable leveling compound is mixed.

Edit

Flow-optimized outlet
Integrated mortar pressure gauge
The output can be changed by changing the A, B and SD pump units as well as adapting the FC parameters
Easily dismantled into individual modules – motor with tilting flange: 30 kg

– material container with pump unit: 26 kg
– chassis: 64 kg
– mixing spiral: 3 kg

Equipped with external vibrator as standard
Flexible mixing intensity thanks to two water inlets
Easy to use for commissioning, retrofitting, maintenance and cleaning
Foldable engine
All-round sealing edge on the material container for accessories
Fits in every station wagon
Mounting position for rotor / stator assembly
Conical mixing tube for optimal material flow with built-in post-mixer
Large throw-in area
Runs powerfully and reliably with luminous flux
Extension funnel – for double the volume
Rubber mixing zone
Suitable for bucket and bagged goods

Edit

Fine filler (mineral)
Fine spatula (pasty)

TECHNICAL SPECIFICATIONS

RITMO L FC-230V plus powercoat 230 V, 1 Ph, 50 Hz

Item no .:
00659659

Power:

Delivery rate max .:
3 l / min

Delivery distance up to:
20 m for leveling compounds (mineral)

Basic equipment:

Connected load:
230 V, 1 Ph, 50 Hz, 2.2 kW
control voltage: 42 V

Drive:
Pump motor: 2.2 kW, 69 - 492 rpm

Mixing tube:
rubber mixing tube with interchangeable flange

Mixing helix:
BIONIK RITMO L plus powercoat
Mineral filler, galvanized

Mortar outlet with mortar pressure gauge:
DN13 female part

Roles:
2 roles

Water connection:
Geka DN12 (1/2 ") - 2.5 bar operating pressure

Operation and control:
start / stop and stepless speed control

Dimensions:

Filling height:
930 mm

Container volume:
45 liters ~ 1.5 bags (each 30 kg)

Length / width / height:
750/600 / 1,430 mm

Total weight:
123 kg

Basic equipment package:

Pump unit : A 2–2.5 powercoat · 3 l / min · 25 bar

Mortar
hose : RONDO DN13 - 15 m

External vibrator: AM3-0.44 - 1.2 m,
230 V, 1 Ph, 50 Hz

Water pump to increase pressure:
not included

Water flow meter:
31.5 - 315 l / h

Air compressor:
not included

Spraying device / fine plastering device : powercoat DN13 VA4 1500 Ewo

Connection cable:
3 x 2.5 mm²,
BLU 3-16 A | BLU 2-16 A - 25 m

Water / air hose:
DN9 (3/8 ") Ewo | Ewo - 16 m
