PFT Multimix

Edit

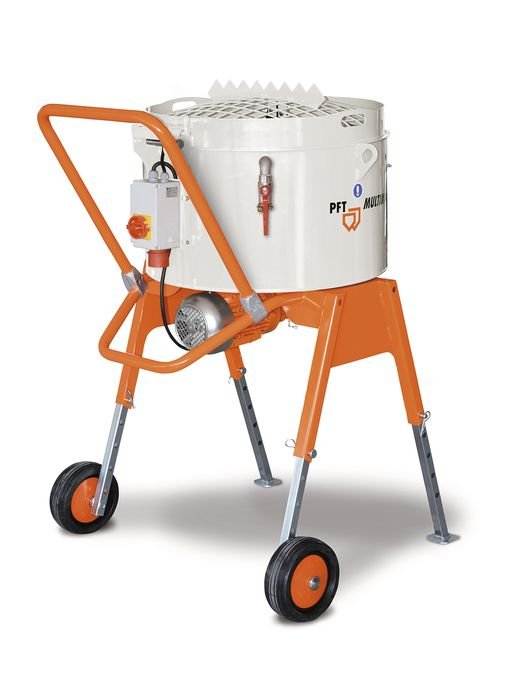

The PFT compulsory mixer (also called trough mixer) MULTIMIX is suitable for mixing various components, cement-based dry mortar as well as your own mixes, SPCC renovation mortar and PCC renovation mortar. The mixture is poured directly into the container and prepared with the prescribed amount of liquid. Counter-rotating stirring hooks ensure a homogeneous mortar mix, saving time. The mix is ​​emptied quickly and cleanly via a flat slide at the bottom of the hopper. In connection with a PFT feed pump, semi-automatic work is possible. In this case, the PFT feed pump transports the mixed material directly to the processing site.

Edit

MULTIMIX 140 plus:

  • Easy handling
  • Minimal maintenance and cleaning effort
  • Self-cleaning mortar outlet
  • Phase inverter in the main switch
  • Opposing stirring hooks
  • Turbo mixer
  • Robust design suitable for the construction site
  • Height adjustable
  • Fits easily over a feed pump, such as B. ZP 3 or SWING

MULTIMIX 100/140:

  • Excellent
    mixing results thanks to the offset arrangement of the mixing arms with mixing blades and wall scrapers.
  • Quick cleaning
  • The mixing arms can be removed easily and without tools and exchanged individually.
  • Simple and metered filling
    This is made possible by the bag ripper on the protective grille.
  • Maximum security
    thanks to the lockable protective grille.
  • Central operating
    switch Provided with a quick stop button and a safety switch-off for the drum cover.
  • Solid and sturdy construction
    No door too wide and easily made it all the way to the top with the large transport wheels.
  • Easy to transport
    Problem-free loading by one person and fits into every station wagon.
  • Quick and easy emptying
    Whether in a bucket, mortar bucket or wheelbarrow, thanks to a segment pusher integrated in the drum base.
Edit
  • Concrete renovation
  • Powder glue
  • PCC and SPCC mortars
  • Mineral plaster
  • Fine concrete
  • Acoustic plaster
  • Epoxy resin
  • Screed
  • Synthetic resin plaster
  • Chimney construction
  • granules
  • Clay plaster
  • Furnace construction
  • Plastering mortar and masonry mortar
  • Cement mortar
  • Plaster
  • Fine plaster
  • Glue
  • plaster
  • Terrazzo
  • Filler
  • lime
  • Screed
  • Grouting material
  • Coating compound

TECHNICAL SPECIFICATIONS

Item no .:
00251636

Power:

Mixing capacity:
80 l / batch

Grain size max .:
8 mm



Basic equipment:

Power connection:
400 V, 3 Ph, 50 Hz, 2.2 kW

Drive motor:
2.2 kW, 56 rpm

Mixing container:
sheet metal

Base:
height adjustable; without folding step

Roles:
2 roles

Water connection:
not included

Operation and control:
start / stop



Dimensions:

Filling height:
1,120 - 1,400 mm

Spout height:
440 - 720 mm, adjustable

Length / width / height:
1,000 / 1,030 / 1,120 mm

Total weight:
148 kg



Basic equipment package:

Connection cable:
not included

Water / air hose:
not included

Art.-No .:
00627406

Power:

Mixing capacity:
80 l / batch

Grain size max .:
8 mm



Basic equipment:

Power connection:
230 V, 1 Ph, 50 Hz, 2.3 kW

Drive motor:
2.3 kW, 29 rpm

Mixing container:
sheet metal

Base:
with folding step

Roles:
2 roles

Water connection:
not included

Operation and control:
start / stop



Dimensions:

Filling height:
1,210 mm

Spout height:
640 mm

Length / width / height:
820/770/1210 mm

Total weight:
119 kg



Basic equipment package:

Connection cable:
not included

Water / air hose:
not included

Art.-No .:
00627405

Power:

Mixing capacity:
50 - 60 l / batch

Grain size max .:
8 mm



Basic equipment:

Power connection:
230 V, 1 Ph, 50 Hz, 2.0 kW

Drive motor:
2.0 kW, 42 rpm

Mixing container:
sheet metal

Base:
without folding step

Roles:
2 roles

Water connection:
not included

Operation and control:
start / stop



Dimensions:

Filling height:
1,190 mm

Spout height:
640 mm

Length / width / height:
720/690 / 1,190 mm

Total weight:
80 kg



Basic equipment package:

Connection cable:
not included

Water / air hose:
not included

rochure: Batch mixer PFT MULTIMIX 100

Brochure: Batch mixer PFT MULTIMIX 140

Brochure: Batch mixer PFT MULTIMIX 140 plus
