Art.-No .:
00206404

Suction capacity:
590 m³ / h

Operating pressure max .:
10 bar

Main application: piston compressor

Strengths and benefits:
– High air output
– Two oil-free compressed air connections
– Reliable motor protection
– Condensate drain cock – Robust castors for enormous maneuverability
– Complete fitting unit with filter pressure reducer
– Can also be operated without a machine ” stand -alone”

Connected load:
400 V, 3 Ph, 50 Hz, 4 kW

Drive motor:
 4 kW, 142

Base:
Included

Connection cable:
2 m

Operation and control:
on / off switch including electrical pressure switch-off

Dimensions:

Boiler volume:
20 liters

Length / width / height:
800/650/760 mm

Total weight:
77 kg

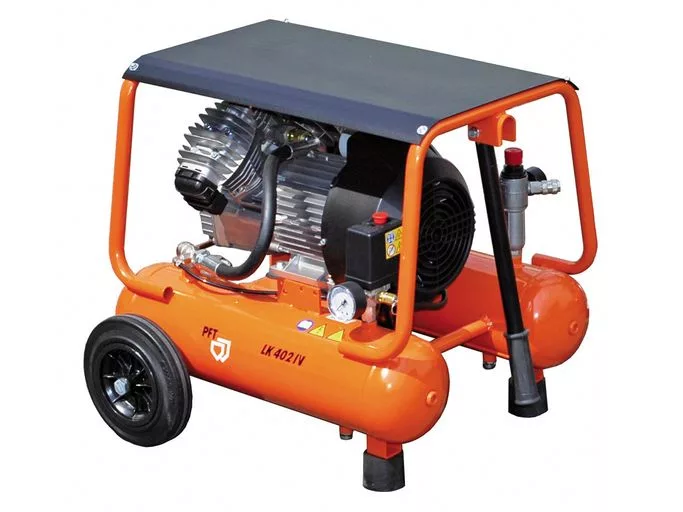

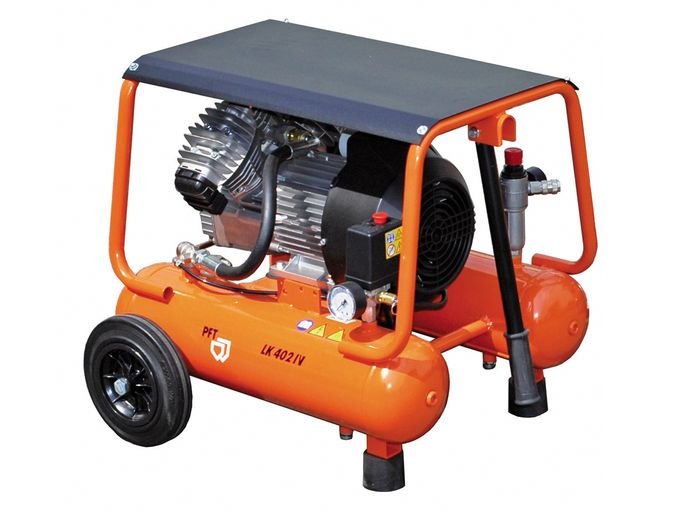

Suction capacity:
400 m³ / h

Operating pressure max .:
10 bar

Main application: piston compressor

Strengths and benefits:
– High air output
– Two oil-free compressed air connections
– Reliable motor protection
– Condensate drain cock – Robust castors for enormous maneuverability
– Complete fitting unit with filter pressure reducer
– Can also be operated without a machine ” stand -alone”

Connected load:
400 V, 1 Ph, 50 Hz, , 2.2 kW

Drive motor:
 2.2 kW, 2,850 rpm

Base:
Included

Connection cable:
2 m

Operation and control:
on / off switch including electrical pressure switch-off

Dimensions:

Boiler volume:
18 liters

Length / width / height:
610/610/560mm

Total weight:
45kg

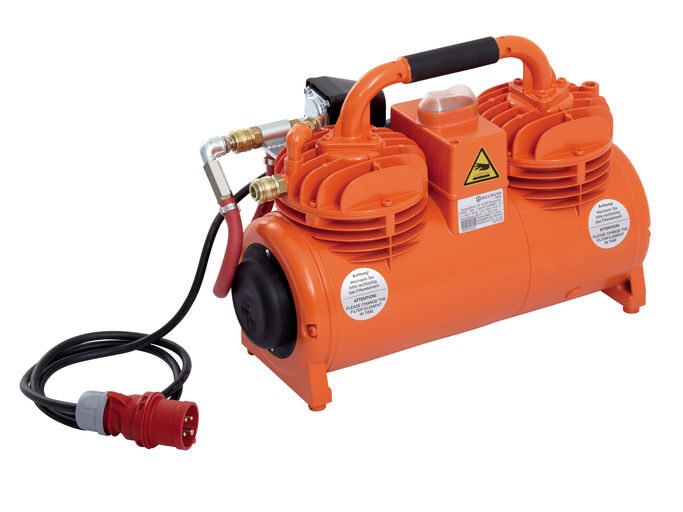

Suction capacity:
250 l / min

Operating pressure max .:
4 bar

Main application: diaphragm compressor

Strengths and benefits:
– Oil-free compressed air
– Installation in machines and free-standing use
– Extremely robust design
– Maintenance
-friendly – Compact and handy
– Can also be operated without a machine “stand-alone”

Connected load:
400 V, 3 Ph, 50 Hz, 0.9 kW

Drive motor:
 0.9 kW, 1,430 rpm

Base:
not Included

Connection cable:
1 m

Operation and control:
on / off switch including electrical pressure switch-off

Dimensions:

Boiler volume:
–

Length / width / height:
490/220/355 mm

Total weight:
23 kg
