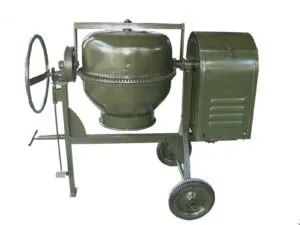

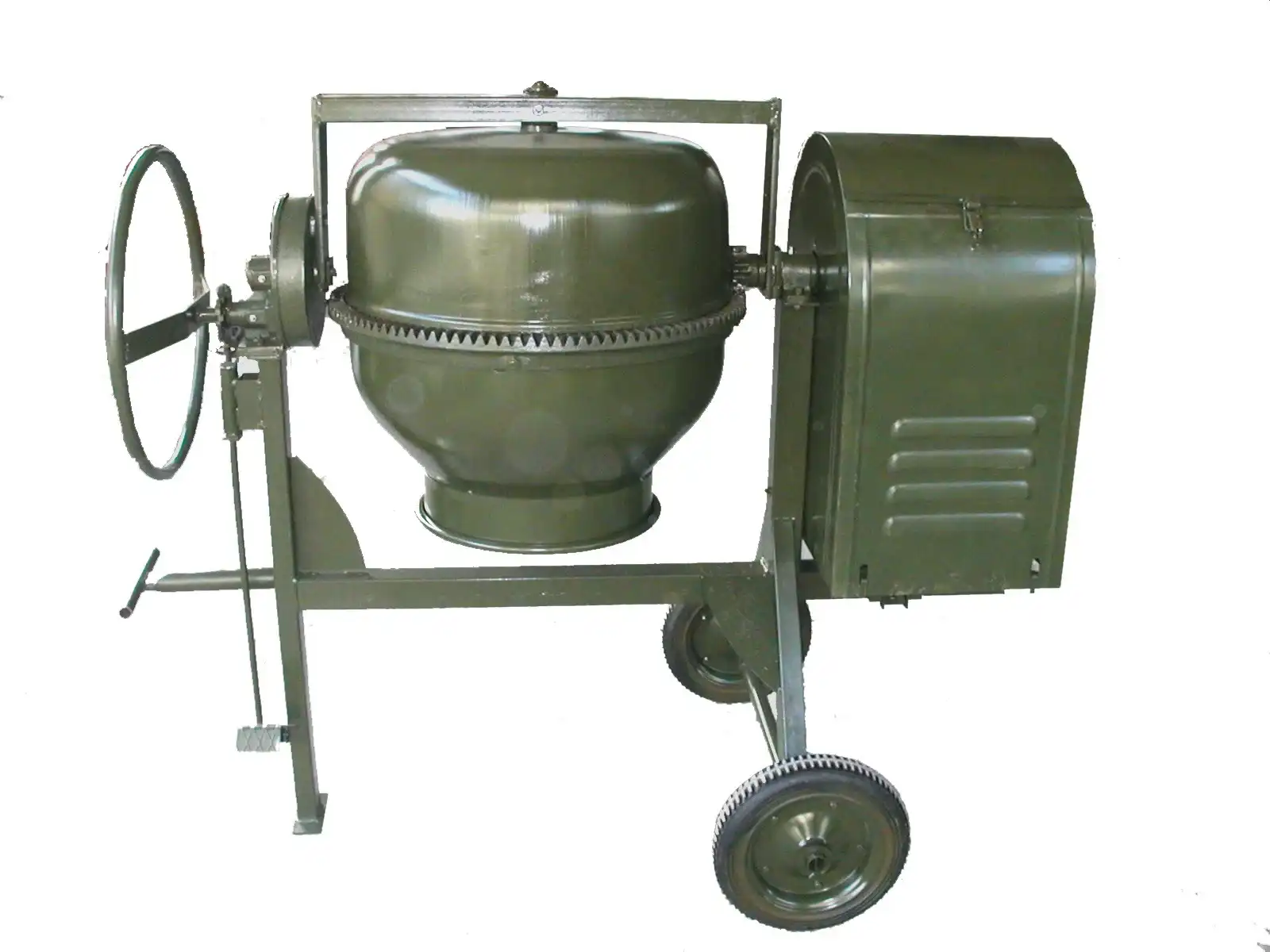

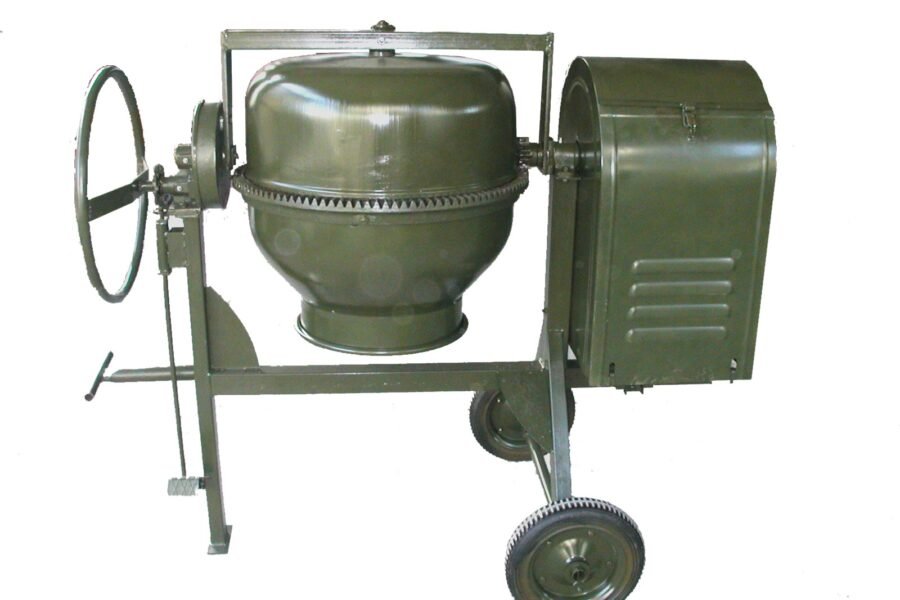

Αdvanced Concrete Mixer

Edit

Reinforced type concrete mixer for professional use in the classic capacity of 210 liters. Reinforced at all critical points of wear. Ideal tool for any professional thanks to its trouble-free operation and reliability.

Edit

Reinforced mixing bucket 2mm thick
Sturdy frame made of hollow structural section
Aid to the steel skeleton at critical points
Steel hoop in the mixing bucket
Steel canopy frame with two lids for ease of use
Cast iron gears not plastic
Hollow structural section beam arm (not pressed tube) with 12mm blade and extra ring at the point of rotation
30mm bucket shaft detachable not glued
Tapered bearings on the mixing bucket shaft for long life
Pillow block bearing with grease nipples
Aluminum pulley with a grooved rim around the outside
Heavy duty cast iron reducer 1/3 weight reduction when emptying the material
Reinforced hub made of reinforced steel tube and not pipe in the mixing bucket
Base ready with holes for electric or gasoline engine
Height-adjustable base for stretching the drive belt
Large wheels with metal rim and solid tire for easy movement
Version with inflatable wheels and towbar (upon request)
Version with stainless steel mixing bucket for special applications (upon request)
Easy maintenance thanks to standard spare parts

Edit

Coatings and mortars of all types
Cement mortars etc.
In foods with stainless steel bucket

Technical Specification

Αdvanced Concrete Mixer

Capacity: 170lit

Height: 1.33m

Length: 1.53m

Width: 0.90m

Weight: 131kgr (without engine)
