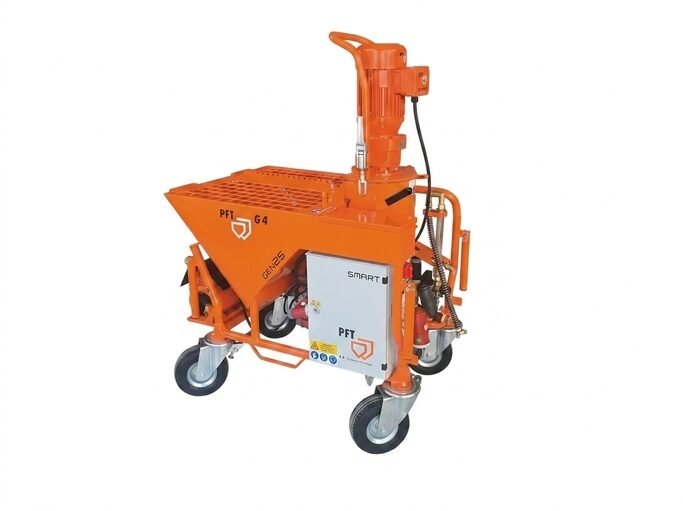

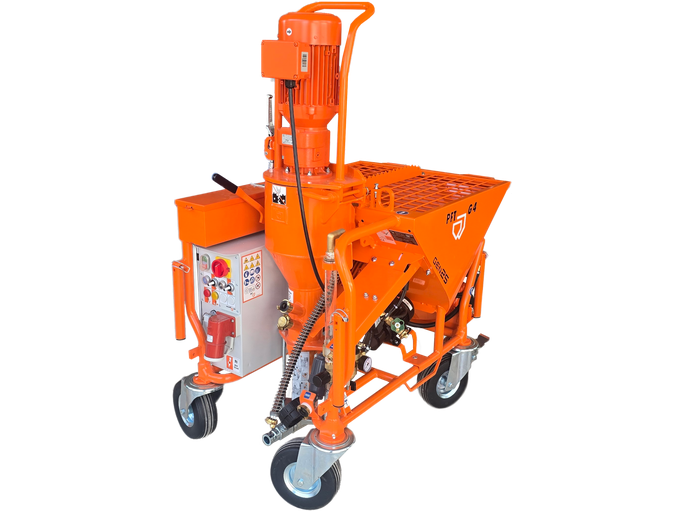

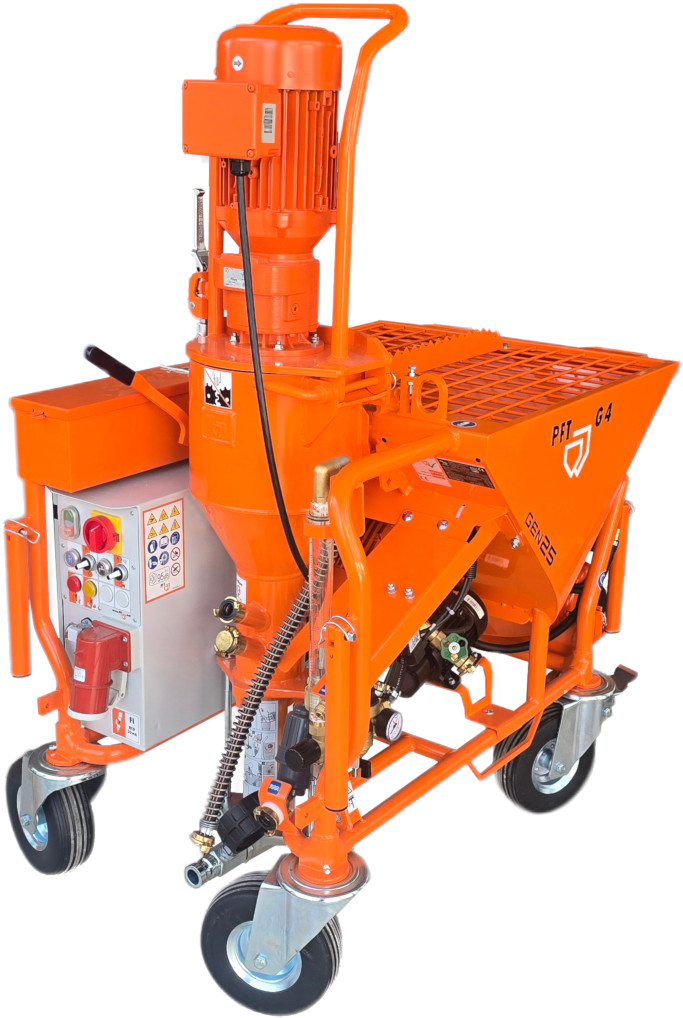

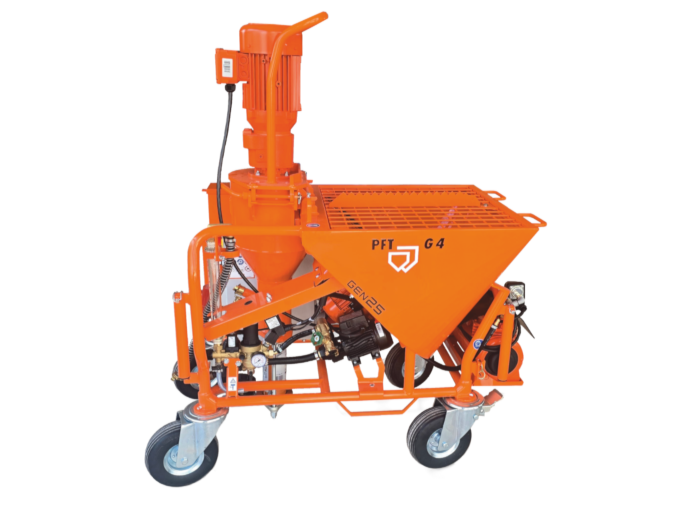

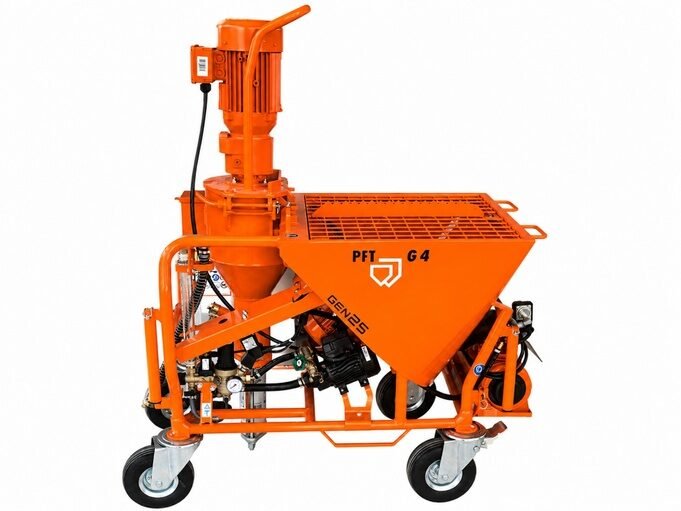

PFT G4 FC 230 V
ΤΕΧΝΙΚΕΣ ΠΡΟΔΙΑΓΡΑΦΕΣ
00856811
Performance :
Conveying output, max.:
35 l/min
Conveying distance up to:
15 m in DN25
Basic equipment :
Connection value:
230V/1ph/50Hz, C 16A
Drive:
6.05 kW, 400 rpm
2-stage gear box with inclination switch
0.30 kW, 12 rpm
Mixing tube:
Steel mixing tube for D pumps
Mixing shaft:
BIONIK G 4 Machine-applied plaster
Grout outlet with mortar pressure gauge:
DN25 male part
Wheels:
2 castors, 2 double-stop castors
Water connection:
Geka DN19 (3/4″) – 2.5 bar working pressure
Operation and control:
Main switch with rotary selector
Start/Stop (on the device | remote)
Mortar pressure reduction button
Water flow button
Manual star wheel operation | automatic automatic
Manual water pump operation | automatic
Dimensions :
Filling height:
910 mm
Hopper volume:
145 litres ~ 5 sacks (at 30 kg)
Length/Width/Height:
1,200/720/1,530 mm
Machine weight (up to pressure flange)
without accessories
~ 277 kg
Basic equipment package :
Pump unit:
SD 6-3 PERFORMER
Mortar hose:
RONDO DN25 – 10 m
Water pump for pressure boosting:
AVO 500
Water flow meter:
100 – 1,000 l/h
Air compressor:
COMP P-200, 230 V, 1 Ph, 50 Hz, 0.5 kW
200 l/min – max. 3.4 bar with pressure switch-off
Spraying gun/fine plastering device:
Spraying gun smartline DN25 F14 200 Geka
Connection cable:
BLU 3-32 A 25 m
Adapter cable BLU 3-32A | Schuko
Water hose/air hose:
Water hose 3/4″ Geka – 10 m
Air hose 1/2″ Ewo | Geka – 11 m
Level sensor
retrofittable
Brochure: G 4 gen 25
