PFT ZP3 L

Edit

Feed pumps take over the transport of materials to the processing site on the construction site. The feed pumps from PFT are suitable for the processing of all pumpable ready-mixed dry mortars based on lime / cement as well as for wet products, pasty compounds and liquid media.

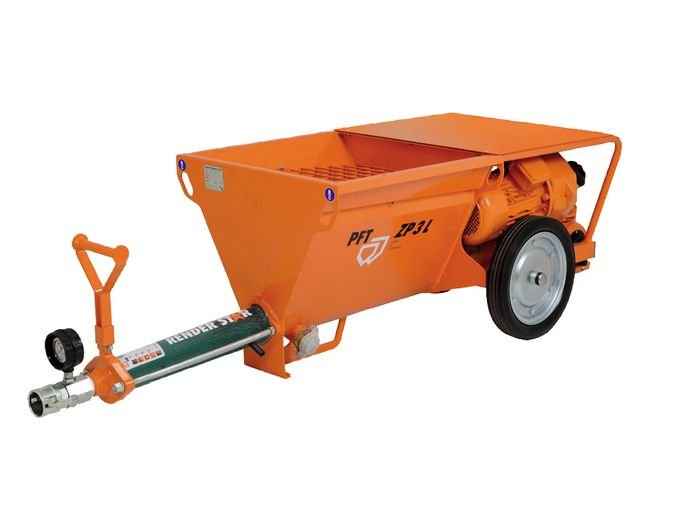

With the ZP 3 family, PFT meets a wide range of requirements. The ZP 3 L is a universal pump with a Vario gearbox for continuously variable pump output. The delivery rate is also continuously adjustable. Thanks to the integrated remote pressure control, the machine can be operated on / off via the air supply on the sprayer.

Edit

Integrated remote pressure control – enables machine operation on / off via the air supply on the sprayer
Pump output infinitely variable via vario gear
Variable delivery rate by changing the pump (L or R pump)
Cleaning nozzle in the material container
Solid rubber castors with steel rims
Double gear seal with inspection opening
Optional: vibrating screen
Pump shaft mixes up material again – no separation in the pump
Robust sheet metal protects the engine and gearbox
Emptying-optimized container – hardly any residual quantities

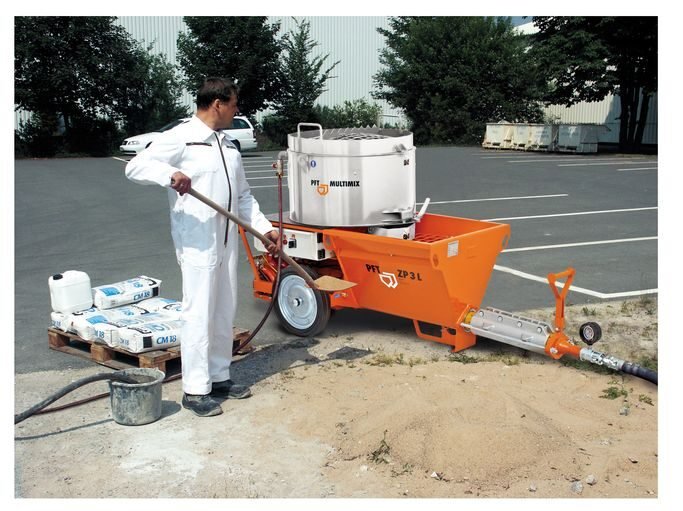

Integrated compulsory mixer (only with ZP 3 L MULTIMIX vario)
Drive: 2.2 kW, 56 rpm
Lifting eyes

Edit

Site mixes
Lime-cement plaster
Clay plaster
Concrete renovation
Masonry mortar
Fire protection mortar
Adhesive mortar
Frame grouting mortar
Floor spatula
Self-leveling screed
Thin screed

TECHNICAL SPECIFICATIONS

ZP 3 L vario 400 V, 3 Ph, 50 Hz

Item no .:
00451331

Power:

Delivery rate max .:
10 - 40 l / min

Delivery distance up to: 60 m at DN50

Basic equipment:

Connected load:
400 V, 3 Ph, 50 Hz, 5.5 kW

Drive:
Pump motor: 5.5 kW, 70 - 260 rpm
Mixer motor: not included

Material container:
sheet metal

Mortar outlet with mortar pressure gauge:
DN50 female part

Rolls:
2 rolls

Water connection:
not included

Operation and control:
pump output continuously adjustable via vario gear

Dimensions:

Filling height:
630 mm

Container volume:
130 liters

Length / width / height:
2,200 / 860/745 mm

Total weight:
292 kg

Basic equipment package:

Pump unit : RENDER STAR 40 l / min 20 bar

Mortar
hose : RONDO DN35 (50 male | 35
male ) - 10 m RONDO DN35 - 10 m

Coupling reduction:
not included

Air compressor:
COMP M-250-V5 handy, 400 V, 3 Ph,
50 Hz, 0.9 kW, 250 l / min - max. 4 bar with pressure cut-off

Spraying device / fine plastering device : DN35 M20 Geka

Connection cable:
not included

Water / air hose:
DN12 (1/2 ") Ewo | Geka - 11 m
DN12 (1/2") Geka | Geka - 11 m

ZP 3 L MULTIMIX vario 400 V, 3 Ph, 50 Hz

Art.-No .:
00280802

Power:

Delivery rate max .:
10 - 40 l / min

Delivery distance up to: 60 m at DN50

Basic equipment:

Connected load:
400 V, 3 Ph, 50 Hz, 5.5 kW

Drive:
Pump motor: 5.5 kW, 70 - 260 rpm
Mixer motor: 2.2 kW, 56 rpm

Material container:
sheet metal

Mortar outlet with mortar pressure gauge:
DN50 female part

Rolls:
2 rolls

Water connection:
Geka DN19 (3/4 ") - 2.5 bar operating pressure

Operation and control:
pump output continuously adjustable via vario gear

Dimensions:

Filling height:
630 mm

Container volume:
130 liters

Length / width / height:
2,200 / 860 / 1,120 mm

Total weight:
366 kg

Basic equipment package:

Pump unit : RENDER STAR 40 l / min 20 bar

Mortar
hose : RONDO DN35 (50 male | 35
male ) - 10 m RONDO DN35 - 10 m

Coupling
reduction : 35M part | 50V part

Air compressor:
COMP M-250-V5 handy, 400 V, 3 Ph,
50 Hz, 0.9 kW, 250 l / min - max. 4 bar with pressure cut-off

Spraying device / fine plastering device : DN35 M20 Geka

Connection cable:
not included

Water / air hose:
DN12 (1/2 ") Ewo | Geka - 11 m
DN12 (1/2") Geka | Geka - 11 m

Brochure: Conveying pump PFT ZP 3 L MULTIMIX

Download
