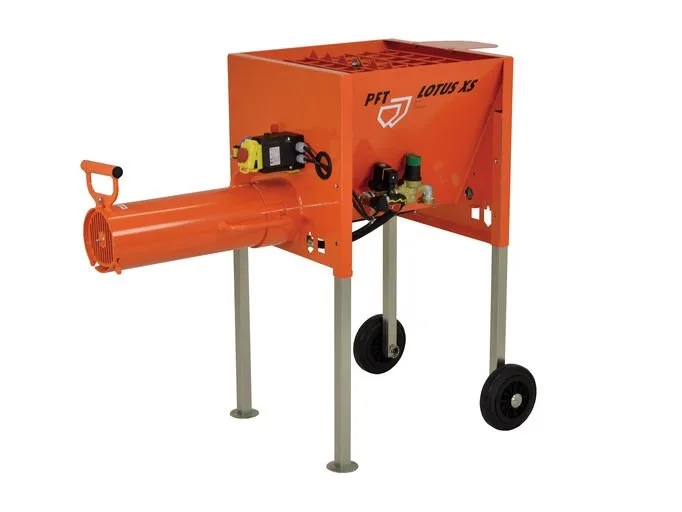

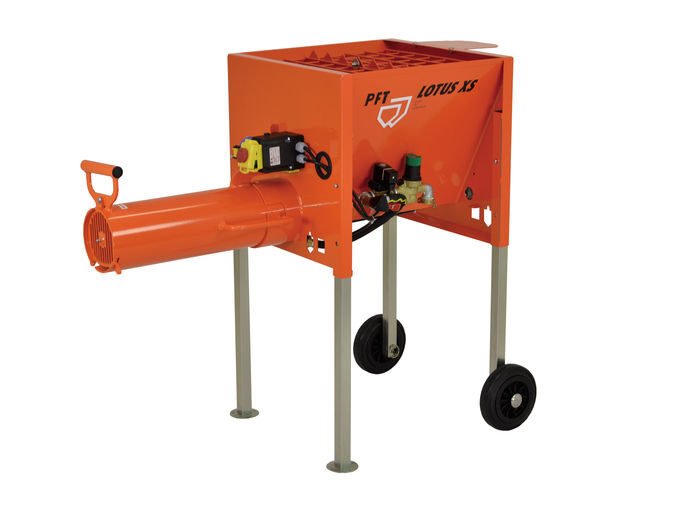

PFT Lotus XS

Edit

The horizontal PFT continuous mixers of the LOTUS series (also known as mortar mixers) continuously and fully automatically mix all factory dry mortars based on lime and cement (e.g. masonry mortar, joint mortar, leveling compounds, adhesive / reinforcement mortar). A special feature of the model is the dosing and mixing shaft as a unit without a central axis and with a rubber outlet made of one piece. The rotatable metering segment doubles the service life of the wearing part. The LOTUS XS FC-230V version is a small, handy mixer for bagged goods with an AC connection. The innovative special mixing shaft ensures homogeneous mixing with low engine power. The optimally placed water inlet minimizes caking and makes the mixer almost self-cleaning. The easy-to-use machine mixes all ready-mixed dry mortars based on lime and cement up to a maximum of 4 mm. The compact LOTUS XS FC-230V fits into every car station wagon.

Edit
  • Optional water flow meter – can be retrofitted on all LOTUS XS models
  • Fits in every station wagon
  • Detachable base
  • Convenient transportation – handle on the mixing tube
  • Water tap with pressure reducer

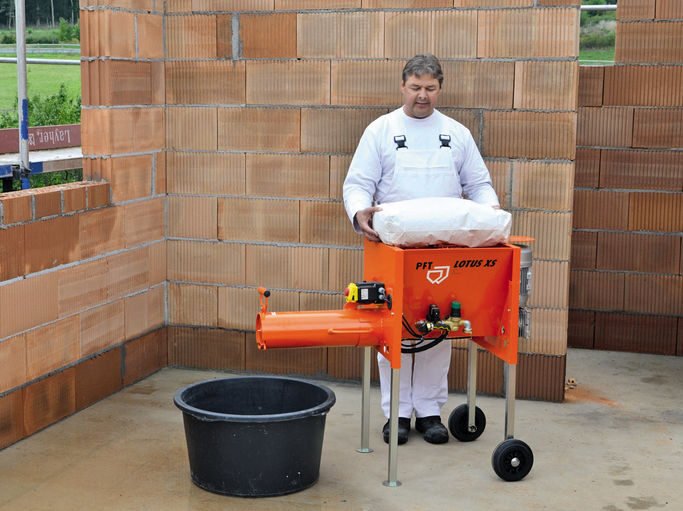

  • Bagged goods mixers
  • Easy handling
  • Minimal maintenance and cleaning effort
  • Tamper-proof special mortar outlet
  • Consistent mixing quality
  • Adjustable filling height by means of a height-adjustable base frame
  • Simple pushing under a feed pump, a mortar bucket or a wheelbarrow.
Edit
  • Tile and grout
  • Lightweight masonry and masonry mortar
  • Adhesive and reinforcement mortar
  • Leveling weights
  • Rubbing and scratching plaster
  • Renovation plaster
  • Fine plaster

TECHNICAL SPECIFICATIONS



Art.-No .:
00246057

Power:

Mixing capacity:
20 l / min

Maximum grain size:
4 mm



Basic equipment:

Connection value:
230 V, 1 Ph, 50 Hz, 1.3 kW

Drive motor:
1.3 kW, 280 rpm

Mixing tube:
steel mixing tube

Base:
removable

Roles:
2 roles

Water connection:
Geka DN12 (1/2 ") - 2.5 bar operating pressure

Operation and control:
start / stop



Dimensions:

Filling height:
975 - 1,115 mm

Container volume:
50 liters ~ 1.6 bags (each 30 kg)

Spout height:
535 - 675 mm adjustable

Length / width / height:
1,240 / 635/975 - 1,115 mm, height adjustable

Total weight:
66 kg



Basic equipment package:

Water flow meter:
not included

Dosing shaft:
20 l / min

Booster pump:
not included

Connection cable:
not included

Water / air hose:
not included

Silo / container handover:
not possible

Brochure: Horizontal screw mixer PFT LOTUS XS
