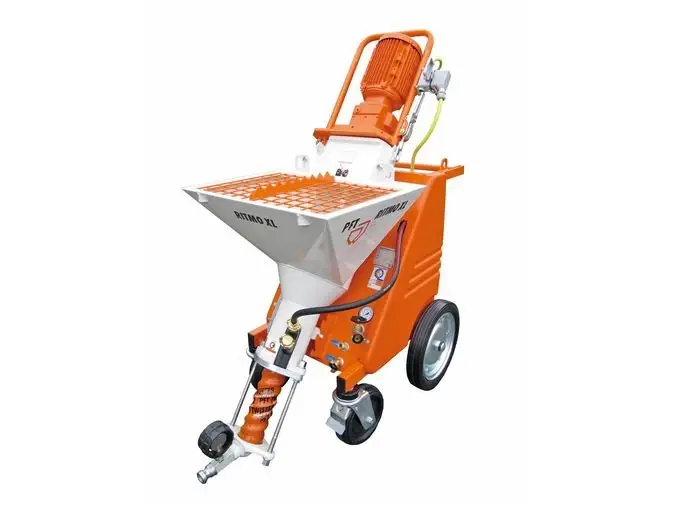

PFT Ritmo XL
ΤΕΧΝΙΚΕΣ ΠΡΟΔΙΑΓΡΑΦΕΣ
00186478
with booster pump
Delivery rate max .:
20 l / min
Delivery distance up to:
50 m for leveling compounds
30 m for plaster mortar
Connected load:
400 V, 3 Ph, 50 Hz, 5.5 kW
Control voltage: 42 V
Drive:
pump motor: 5.5 kW, 400 rpm
Mixing tube:
rubber mixing tube with interchangeable flange
Mixing helix:
BIONIK RITMO XL machine plaster
Mortar outlet with mortar pressure gauge:
DN25 male part
Castors:
2 castors, 2 swivel castors
Water connection:
Geka DN12 (1/2 ") - 2.5 bar operating pressure
Operation and control:
start / stop
Dimensions:
Filling height:
850 - 1,010 mm
Container volume:
70 liters ~ 2.3 bags (30 kg each)
Length / width / height:
1,300 / 700 / 1,400 mm
Total weight:
224 kg
Pump unit : TWISTER D 6–3 · 20 l / min · 30 bar
Mortar
hose : RONDO DN25 - 10 m
External vibrator:
not included
Water pump to increase pressure:
AV 700, 400 V, 3 Ph, 50 Hz, 0.5 kW
Water flow meter:
150 - 1,500 l / h
Air compressor:
COMP M-250-X0 handy, 400 V, 3 Ph,
50 Hz, 0.9 kW, 250 l / min -
max. 4 bar with pressure cut-off
Spraying device / fine plastering device : DN25-360 ° S14 200 Geka
Connection cable:
not included
Water / air hose:
DN12 (1/2 ") Ewo | Geka - 11 m
00197821
without pressure booster pump
Delivery rate max .:
20 l / min
Delivery distance up to:
30 m for leveling compounds
15 m for plaster mortar
Connected load : 230/400 V, 1/3 Ph, 50 Hz, 4 kW
Control voltage: 42 V
Drive:
Pump motor: 4 kW, 120 - 400 rpm
Mixing tube:
rubber mixing tube with interchangeable flange
Mixing helix:
BIONIK RITMO XL machine plaster
Mortar outlet with mortar pressure gauge:
DN25 male part
Castors:
2 castors, 2 swivel castors
Water connection:
Geka DN12 (1/2 ") - 2.5 bar operating pressure
Operation and control:
start / stop and stepless speed control in 230 volt operation
Filling height:
850 - 1,010 mm
Container volume:
70 liters ~ 2.3 bags (30 kg each)
Length / width / height:
1,300 / 700 / 1,400 mm
Total weight:
232 kg
Pump unit : SD 6–3 slimline · 20 l / min · 25 bar
Mortar
hose : RONDO DN25 - 10 m
External vibrator:
not included
Water pump to increase pressure:
not included
Water flow meter:
150 - 1,500 l / h
Air compressor:
COMP P-200, 230 V, 1 Ph, 50 Hz,
0.5 kW, 200 l / min - max. 3.4 bar
with pressure cut-off
Spraying device / fine plastering device : DN25-360 ° S14 200 Geka
Connection cable:
adapter plug RED 5-32 A | BLU 2-16 A
Water / air hose:
DN12 (1/2 ") Ewo | Geka - 11 m
00197819
without pressure booster pump
Delivery rate max .:
20 l / min
Delivery distance up to:
30 m for leveling compounds
15 m for plaster mortar
Connected load:
230 V, 1 Ph, 50 Hz, 4 kW
control voltage: 42 V
Drive:
pump motor: 4 kW, 120 - 400 rpm
Mixing tube:
rubber mixing tube with interchangeable flange
Mixing helix:
BIONIK RITMO XL machine plaster
Mortar outlet with mortar pressure gauge:
DN25 male part
Castors:
2 castors, 2 swivel castors
Water connection:
Geka DN12 (1/2 ") - 2.5 bar operating pressure
Operation and control:
start / stop and stepless speed control
Filling height:
850 - 1,010 mm
Container volume:
70 liters ~ 2.3 bags (30 kg each)
Length / width / height:
1,300 / 700 / 1,400 mm
Total weight:
224 kg
Pump unit : SD 6–3 slimline · 20 l / min · 25 bar
Mortar
hose : RONDO DN25 - 10 m
External vibrator:
not included
Water pump to increase pressure:
not included
Water flow meter:
150 - 1,500 l / h
Air compressor:
COMP P-200, 230 V, 1 Ph, 50 Hz,
0.5 kW, 200 l / min - max. 3.4 bar
with pressure cut-off
Spraying device / fine plastering device : DN25-360 ° S14 200 Geka
Connection cable:
3 x 2.5 mm², BLU 3-16 A | BLA 2-16 A - 25 m
Water / air hose:
DN12 (1/2 ") Ewo | Geka - 11 m
PFT Ritmo XL
