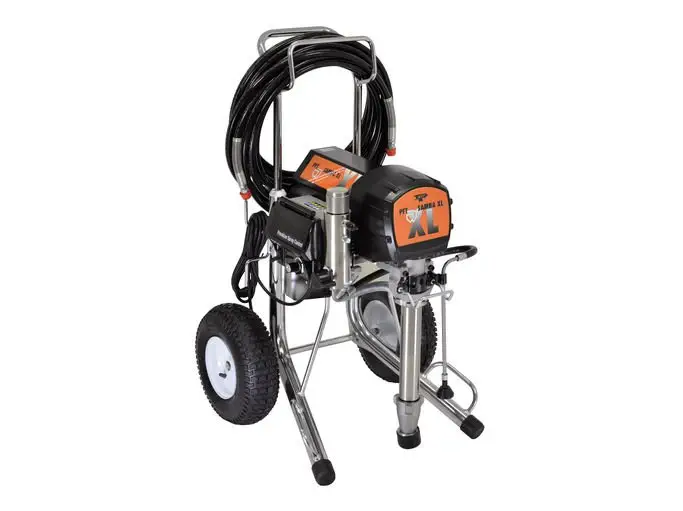

PFT Samba XL
ΤΕΧΝΙΚΕΣ ΠΡΟΔΙΑΓΡΑΦΕΣ
SAMBA XL FC-230V 230 V, 1 Ph, 50/60 Hz
Art.-No .:
00601802
00601802
Power:
Delivery rate max .:
5.5 l / min
Delivery pressure max .:
227 bar
Basic equipment:
Connection value:
230 V, 1 Ph, 50/60 Hz, 1.65 kW
Drive:
pump motor: 1.65 kW
Pump outlet:
DN9
Rolls:
2 rolls
Nozzle size max .:
max. 0.037 "
Operation and control:
pump output infinitely variable
Dimensions:
Length / width / height:
670/780/730 - 1,020 mm,
height adjustable
Total weight:
~ 58 kg
Basic equipment package:
Conveying
hose : - high pressure hose DN9 (3/8 ") - 15 m
- high pressure hose DN6 (1/4") - 0.9 m
Spray device with nozzle holder:
In Line Texspray DN9 30 °
Spray nozzle:
RAC X 531 and 535
Water / air hose:
not included
Brochure: Airless spraying gun PFT SAMBA XL
