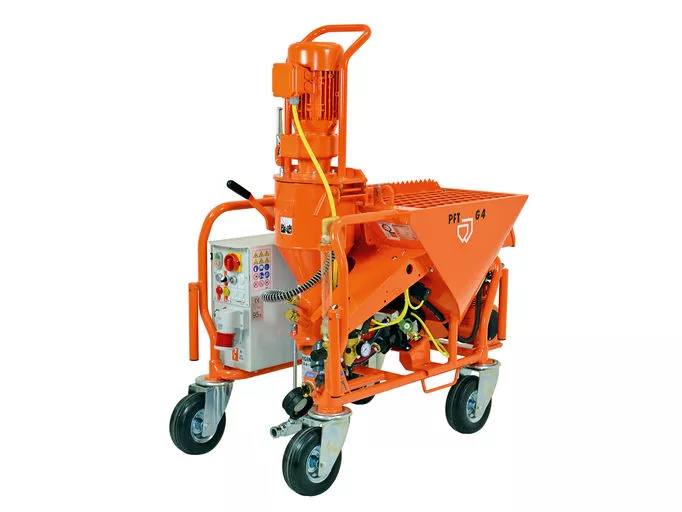

PFT G4 Smart
ΤΕΧΝΙΚΕΣ ΠΡΟΔΙΑΓΡΑΦΕΣ
00257359
with booster pump
Delivery rate max .:
35 l / min
Delivery distance up to: 30 m for DN25
Connected load:
400 V, 3 Ph, 50 Hz, 5.5 kW
control voltage: 42 V
Drive:
Pump motor: 5.5 kW, 400 rpm
2-stage gear with tilt
switch Cell wheel motor : 0.75 kW, 28 rpm
Mixing tube:
Mixing tube without an interchangeable flange
Mixing helix:
BIONIK G 4 machine plaster
Mortar outlet with mortar pressure gauge:
DN25 male part
Castors:
2 swivel castors, 2 double-stop swivel castors
Water connection:
Geka DN19 (3/4 ") - 2.5 bar operating pressure
Operation and control:
start / stop including water pump control
Dimensions:
Filling height:
910 mm
Container volume:
145 liters ~ 5 bags (each 30 kg)
Length / width / height:
1,200 / 720 / 1,530 mm
Total weight:
285 kg
Basic equipment package:
Pump unit : D 6-3 wf 20 l / min 30 bar
Mortar
hose : RONDO DN25 - 10 m
Water pump to increase pressure:
AVO 500
400 V, 3 Ph, 50 Hz, 0.37 kW
Water flow meter:
100 - 1,000 l / h
Air compressor:
COMP M-250-X0 handy, 400 V,
3 Ph, 50 Hz, 0.9 kW, 250 l / min -
max. 4 bar with pressure cut-off
Spraying device / fine plastering device : smartline DN25 F14 200 Geka
Connection cable:
not included
Water / air hose:
DN12 (1/2 ") Ewo | Geka - 11 m
00260622
without booster pump
Delivery rate max .:
35 l / min
Delivery distance up to: 30 m for DN25
Connected load:
400 V, 3 Ph, 50 Hz, 5.5 kW
control voltage: 42 V
Drive:
Pump motor: 5.5 kW, 400 rpm
2-stage gear with tilt
switch Cell wheel motor : 0.75 kW, 28 rpm
Mixing tube:
Mixing tube without an interchangeable flange
Mixing helix:
BIONIK G 4 machine plaster
Mortar outlet with mortar pressure gauge:
DN25 male part
Castors:
2 swivel castors, 2 double-stop swivel castors
Water connection:
Geka DN19 (3/4 ") - 2.5 bar operating pressure
Operation and control:
start / stop including water pump control
Dimensions:
Filling height:
910 mm
Container volume:
145 liters ~ 5 bags (each 30 kg)
Length / width / height:
1,200 / 720 / 1,530 mm
Total weight:
285 kg
Basic equipment package:
Pump unit : D 6-3 wf 20 l / min 30 bar
Mortar
hose : RONDO DN25 - 10 m
Water pump to increase pressure:
not included
Water flow meter:
100 - 1,000 l / h
Air compressor:
COMP M-250-X0 handy, 400 V,
3 Ph, 50 Hz, 0.9 kW, 250 l / min -
max. 4 bar with pressure cut-off
Spraying device / fine plastering device : smartline DN25 F14 200 Geka
Connection cable:
not included
Water / air hose:
DN12 (1/2 ") Ewo | Geka - 11 m
G 4 smart
