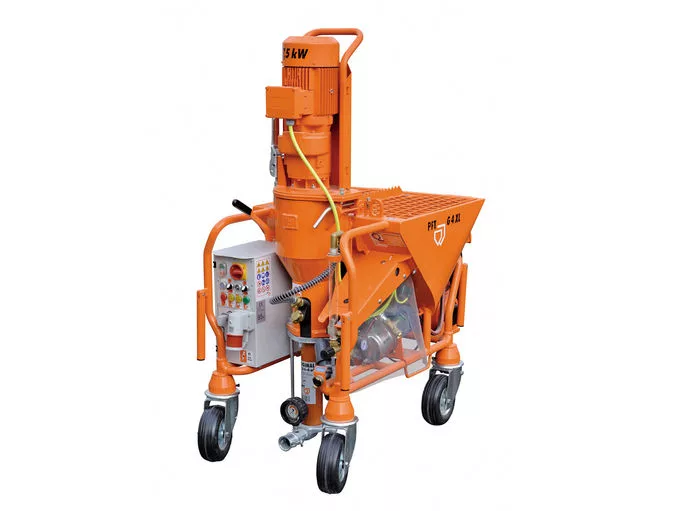

Art.-No .:
00406795
with booster pump

Basic equipment:
  • Pump drive 7.5 kW, 400 rpm
  • Rotary motor 0.75 kW, 28 rpm –
    delivery rate: 85 l / min
  • Material container
    capacity 145 liters ~ 5 bags (30 kg)
  • Conical mixing tube for optimal material flow
  • Control voltage 42 volts
    for maximum operational safety
  • Prepared for remote control cable
  • Mortar outlet DN35 female part with mortar pressure gauge
  • Pressure flange per improved material flow, extended rotor / stator service life
  • Rubber mixing zone, for easy cleaning, with interchangeable flange for D and R pumps
    Note: Scope of delivery: suction and pressure flange for D pump
  • Mixing helix BIONIK G 4 machine plaster
  • Switches and connections are part of the basic construction
  • Connections in the control cabinet:
    BLA 4-16 | H 4 | RED 4-16 | BLU 2-16
  • Tool box including basic accessories
  • Mixing tube cleaner with cleaner shaft
  • Water connection Geka DN19 (3/4 “) –
    necessary operating pressure 2.5 bar
  • Reinforced tubular frame and robust wheel mount
  • Forklift lugs and lifting eyes
  • Wind deflector on the engine –
    prevents turbulence in the container
  • Flexible mixing intensity thanks to two water inlets
  • Empty protection in the material container prevents it from running empty
  • Trouble-free operation thanks to the large fine water filter with a small mesh size



Basic equipment package:
  • Rotor D 6–4 / stator D 6–4
    Pump output: max. 20 l / min, 40 bar,
    up to 40 m delivery distance with DN25
    up to 65 m delivery distance with DN35
  • Water pump as pressure
    booster pump AV 1000, 400 V, 3 Ph, 50 Hz, 0.6 kW
  • Water flow meter 150 – 1,500 l / h
  • RONDO DN25 hydraulic connection male
    part | M-part – 15 m
  • Air hose DN12 (1/2 “) Ewo | Geka – 15 m
  • Cleaning piece for cleaning the material
    hose DN35 female part | Geka
  • Adapter coupling DN35 male part | DN25 male part
  • Fine plastering device DN25-360 ° S14 200 Geka
  • Air compressor COMP M-250-V5 handy,
    400 V, 3 Ph, 50 Hz, 0.9 kW,
    250 l / min with pressure control
